Case Study

Air quality monitoring at the Cemex plant in Monterrey, Mexico

Cemex
Sectors: ,

Need

Cemex, one of the world’s leading cement manufacturers develops a proactive policy that seeks to resolve in advance the possible problems that its production activity may generate. For this reason, it asked us to deploy a solution that would protect the health of the population and workers at its facilities, as well as ensure the conservation of the natural environment.

To this end, they contacted Rossbach, the distributor of Kunak products in Mexico, to ask for the installation of a perimeter monitoring ring at its production plant in Monterrey (Mexico).

This Mexican multinational has been investing heavily in sustainability for several years, so this measure was a continuation of its commitment to the well-being of the local population, its employees and compliance with environmental regulations.

The monitoring network records the main parameters to alert when any of them are altered through a notification system and thus helps in taking preventive measures.

Deployment of an environmental monitoring network that provides excellent data quality on the main pollutants derived from cement production

Solution

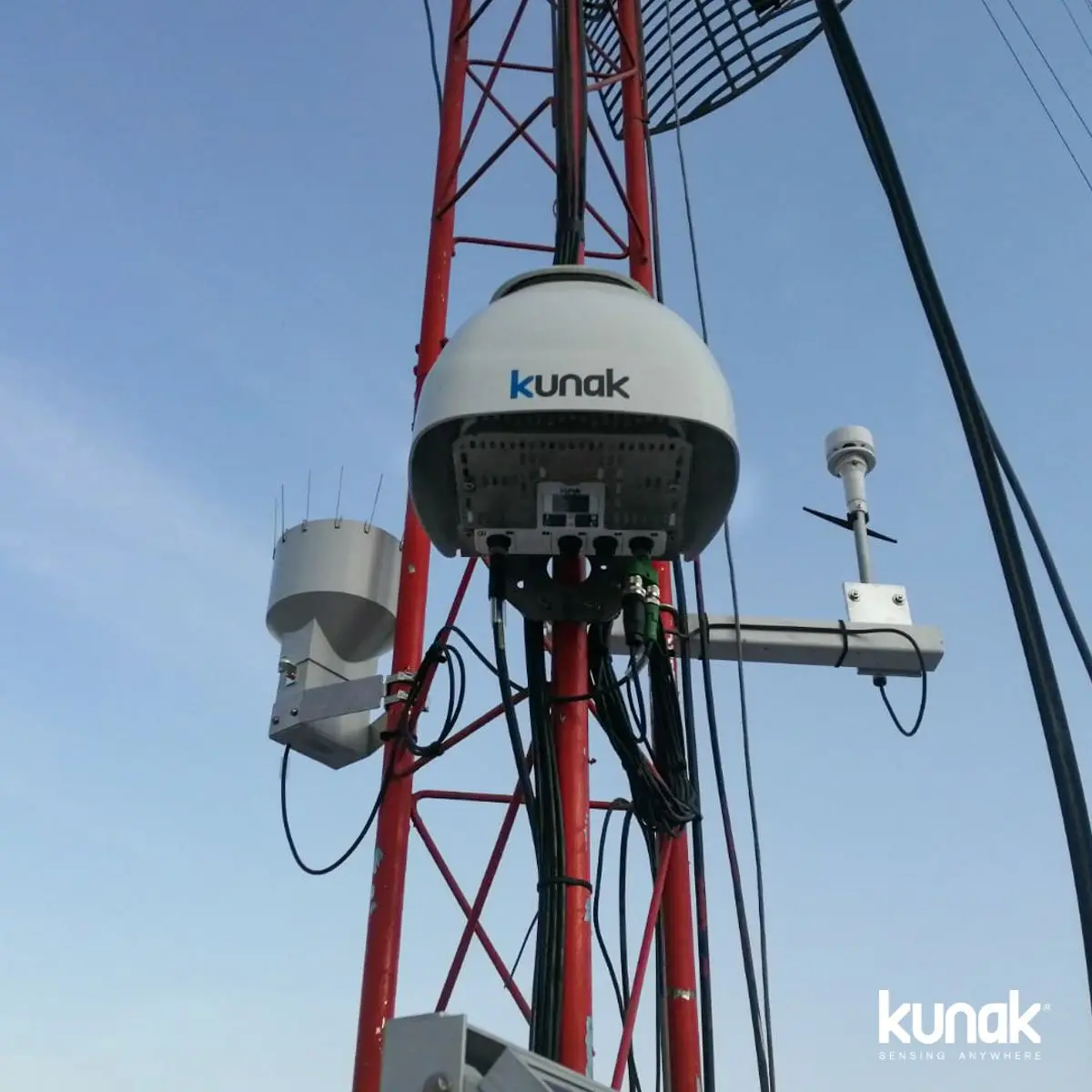

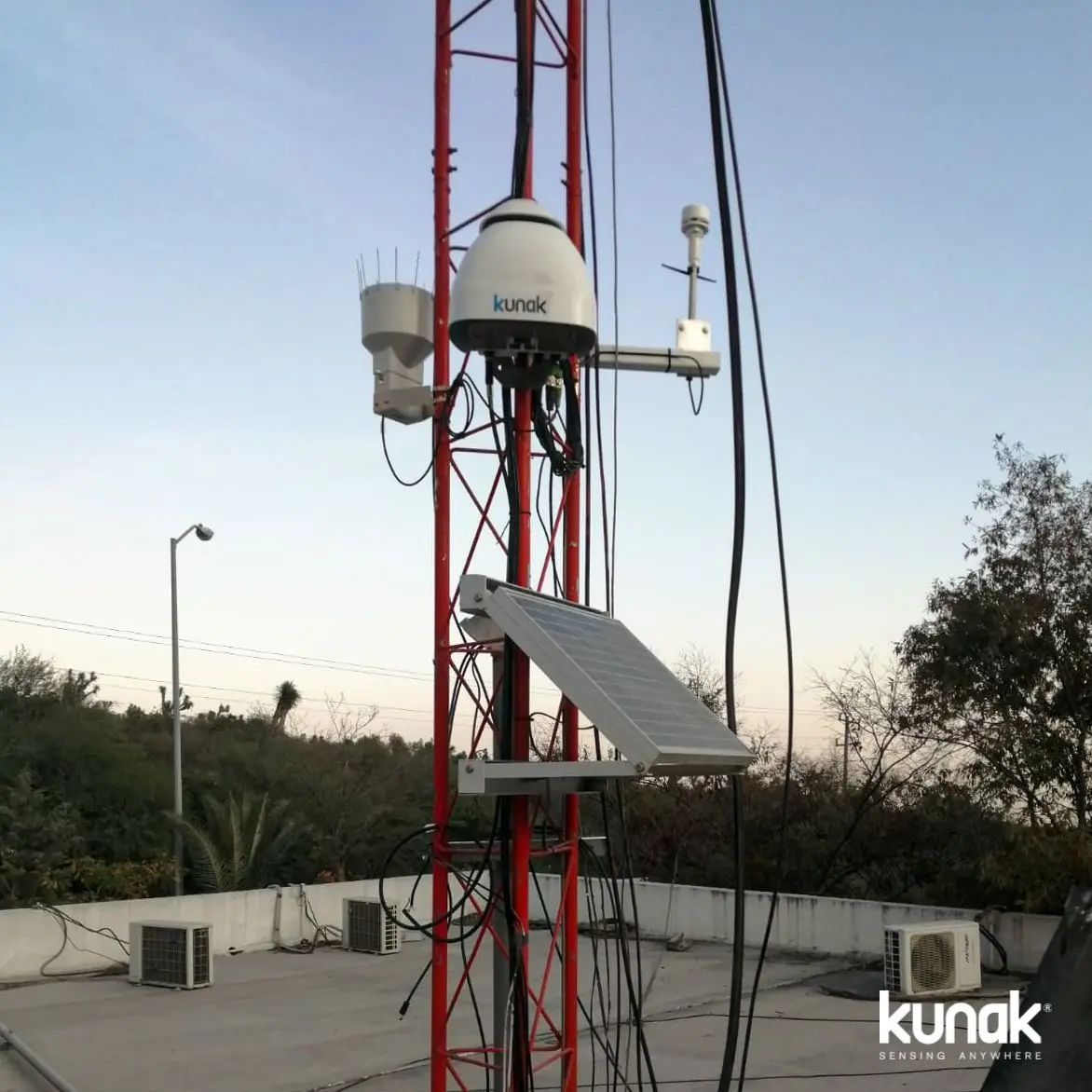

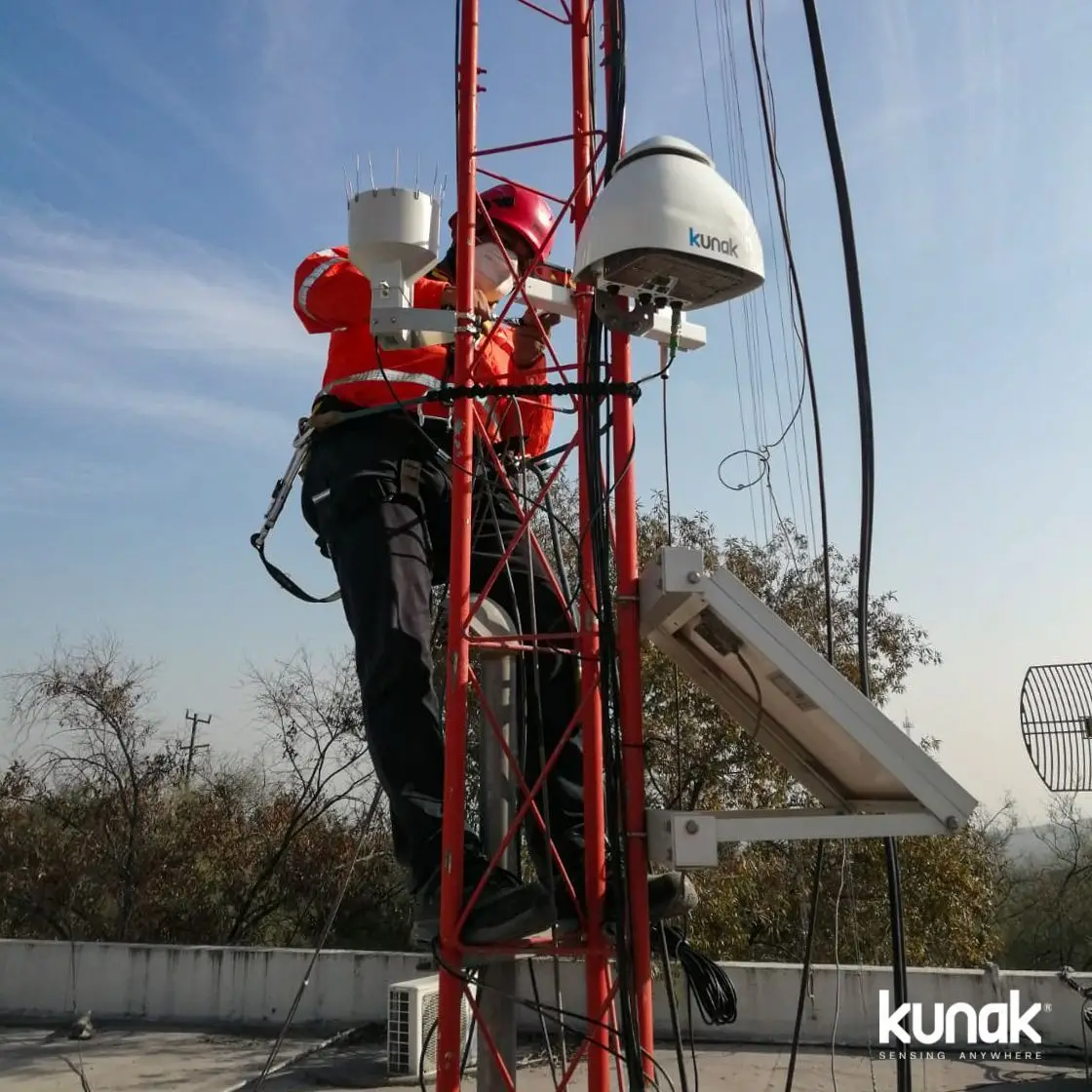

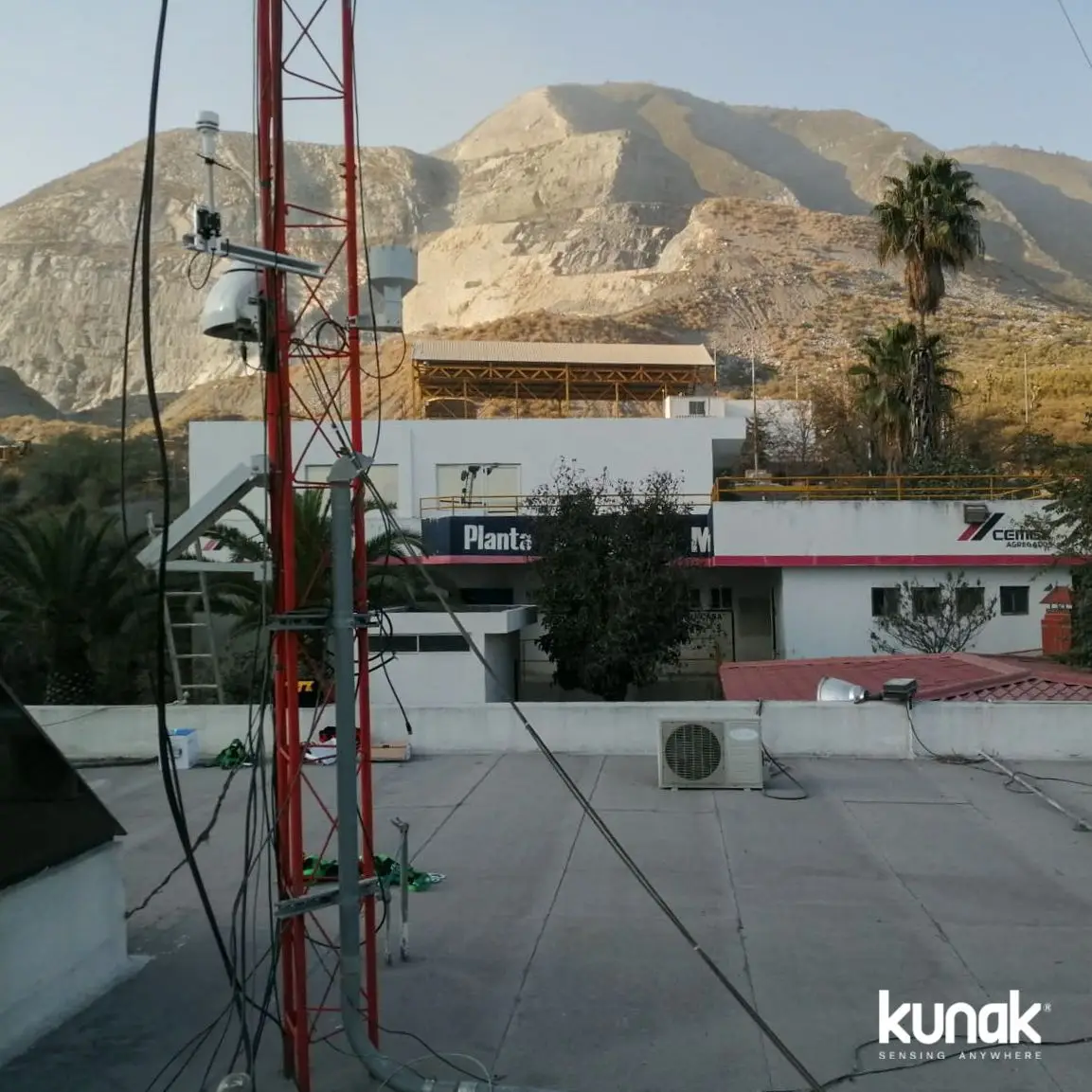

Deployment of a perimeter network of Kunak AIR Pro stations for air quality monitoring as well as an anemometer and rain gauge.

With this network, different parameters are measured continuously thus providing information on the AQI (Air Quality Index).

Results

Deployment of an environmental monitoring network that provides excellent data quality on the main pollutants derived from cement production and design of an early warning system when any parameter exceeds the established limit values to thus ensure and protect the health of both plant workers and nearby populations.

In 2019, CEMEX achieved a large reduction in its emissions compared to 2005 levels, year zero, when it began investing in improving air quality, making this multinational a guarantor of sustainability and human health.

Project details

Customer: Cemex

User: Cemex

Location: Monterrey, México

Sectors: ,

Year: 2022

Parameters:

  • PM10, PM4, PM2,5 and PM1, Total Suspended Particulate Matter (TSP) and Total Particulate Count (TPC).
  • Sulphur oxide (SO2), nitrogen dioxide (NO2), ozone (O3) and carbon monoxide (CO).
  • Temperature, relative humidity and atmospheric pressure.
  • Wind speed and direction.
  • Collection and measurement of precipitation.

Solutions

  • AIR ProProfessional air quality monitoring station
    Air quality monitor

    AIR Pro

    The most accurate air quality monitoring station

    SENSOR-BASED | BEST AVAILABLE ACCURACY

    Benefits

    • Multi-pollutant
    • Smart cartridge system
    • Fully autonomous
    • Real-time data
    • Proven accuracy
    See more
  • AIR CloudAir quality software
    Air quality software - Kunak AIR Cloud

    AIR Cloud

    Multipurpose air quality software for professionals

    REAL-TIME DATA | ALWAYS UPDATED

    Benefits

    • Secure and condifential
    • Air quality reporting
    • Advanced data analysis and visualisation
    • Reliable data guaranteed
    • Data sharing and integration
    See more
  • Particulate MatterReliable real-time data on suspended particles

    Particulate Matter

    Reliable information about particulate matter

    GASPLUG TECHNOLOGY | PATENTED DESIGN

    Specs

    • Optical particle counter
    • Up to R2 >0.9
    • Range: 0-1,000 | 0-2,000 | 0-10,000 ppb
    • Resolution: 1 μg/m3
    • 24 months of operating life
    See more
  • Sulphur dioxideReliable real-time data on SO2
    Sulphur_dioxide

    Sulphur dioxide

    Reliable information about sulphur dioxide

    GASPLUG TECHNOLOGY | PATENTED DESIGN

    Specs

    • Electrochemical
    • R2 >0.7
    • Range: 0-10,000 ppb
    • Resolution: 1 ppb
    • 24 months of operating life
    See more
  • Nitrogen dioxideReliable real-time data on NO2
    Nitreogen_dioxide

    Nitrogen dioxide

    Reliable information about nitrogen dioxide

    GASPLUG TECHNOLOGY | PATENTED DESIGN

    Specs

    • Electrochemical
    • R2 >0.85
    • Range: 0-12,000 ppb (Type A) | 0-500 ppm (Type B)
    • Resolution: 1 ppb (Type A) | 0.01 ppm (Type B)
    • 24 months of operating life
    See more
  • OzoneReliable real-time data on O3
    Ozone

    Ozone

    Reliable information about ozone

    GASPLUG TECHNOLOGY | PATENTED DESIGN

    Specs

    • Electrochemical
    • R2 >0.9
    • Range: 0-2,000 ppb
    • Resolution: 1 ppb
    • 24 months of operating life
    See more
  • Carbon monoxideReliable real-time data on CO
    Carbon-monoxide

    Carbon monoxide

    Reliable information about carbon monoxide

    GASPLUG TECHNOLOGY | PATENTED DESIGN

    Specs

    • Electrochemical
    • R2 >0.85
    • Range: 0-12,000 ppb (Type A) | 0-500 ppm (Type B)
    • Resolution: 1 ppb (Type A) | 0.01 ppm (Type B)
    • 24 months of operating life
    See more
