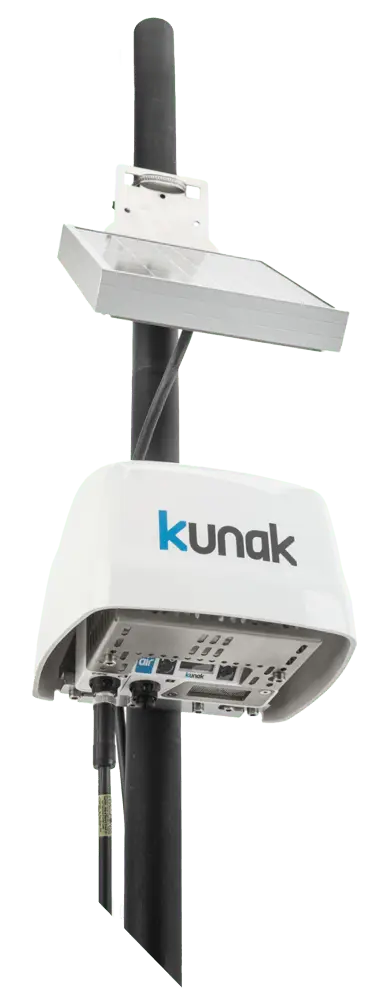

Kunak AIR Lite

Air quality monitoring station

Accurately measure air pollution

INDUSTRY GRADE DESIGN | HIGHEST ACCURACY

US-EPA-united-states-environmental-protection-agency
AIRPARIF
AQ-SPEC
SEDEMA Secretaría del medio ambiente de la Ciudad de México
Ricardo
air quality monitoring
Airlab winner stamp

Start measuring the environmental impact of your operations.

Monitor pollution levels and make quick, effective decisions to protect human health and the environment. With the Kunak AIR Lite air quality monitoring station, you get accurate data on multiple pollutants easily, quickly and cost-effectively.

Designed for industrial applications and mass deployments in cities, the Kunak AIR Lite provides you with accurate, real-time air quality information.

Get high accuracy and spatial resolution air quality data.

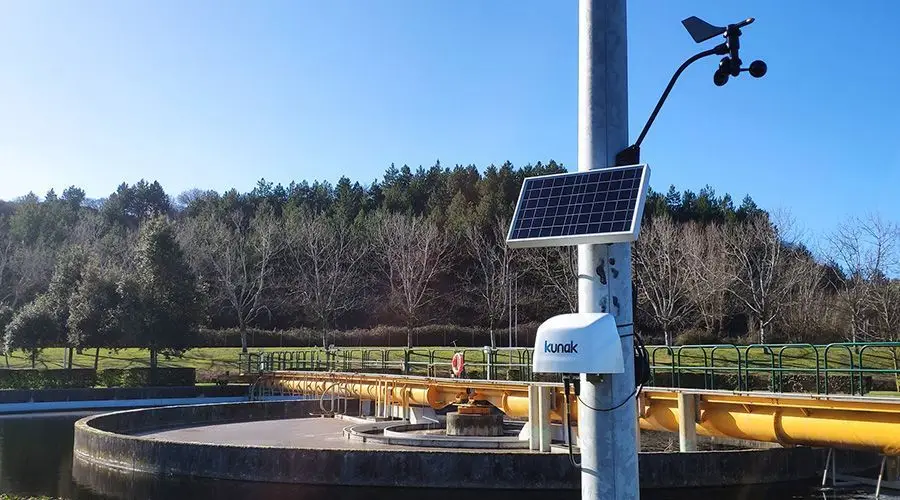

air quality monitoring station kunak

Thanks to the patented smart cartridge technology, you can measure particulate matter (PM1, PM2.5 and PM10) and 2 gases simultaneously. If the characteristics of the project change, you can replace the cartridges and install new ones without having to send it back to the factory.

You can connect probes for wind, rain, noise, etc to get a more accurate pollution picture.

The Kunak AIR Lite is the perfect solution for your environmental monitoring network, designed for projects where no more than 2 gases and particles need to be measured and already used by many companies around the world.

Features:

Cartridge system

Patented cartridge system

Cartridge system

2 gases and particles

Cartridge system

Robust and compact

Fully autonomous

Autonomous operation

Additional probes

Additional probes

Reduced maintenance

Reduced maintenance

Take fast and effective actions based on accurate and reliable data.

All data collected by the sensor network is wirelessly transmitted to the Kunak AIR Cloud software, where you can visualise and analyse it to make the best decisions to reduce the environmental impact of your operations.

Our solution has been tested by the world’s leading air quality experts.

US-EPA-united-states-environmental-protection-agency
AQ-SPEC
AIRPARIF
SEDEMA Secretaría del medio ambiente de la Ciudad de México
Ricardo

Parameters

  • Temperature
  • Humidity
  • Atmospheric pressure
  • Dew point

Get reliable and real-time information on inmissions

Data quality is a key issue since data of poor or unknown quality is less useful than no data since it can lead to wrong decisions. (Snyder et al., 2013)

Benefits

You cannot improve what you cannot measure.

Application based design

Application-based design

Select your targeted pollutants for industrial monitoring or massive deployments in cities.

Built-in OLED display

Built-in OLED display

Easy installation and on-field diagnosis thanks to its embedded display.

Best accuracy

Best accuracy

Get the most reliable and accurate data without the need of additional external instruments.

Cost-effective

Cost-effective

Get the most accurate technology at a fair cost.

Cartridges system

Cartridges system

Replace and combine gas cartridges and PM sensor with a plug & play system.

Easy data integration

Easy data integration

Local wired integration through slave Modbus RTU or via API through the cloud.

Easy data integration

Rugged & Compact design

The smallest air quality solution designed for harsh environments (IP65 & IK08).

Targeted pollutants

Targeted pollutants

Measure up to 2 gases and particulate matter at once.

Fully autonomous

Fully autonomous

Autonomous operation with its built-in battery and solar panel.

Applications

urban

Urban

Creating spaces where people want to live by monitoring air quality.
See more
Industry & Odours

Industry & Odours

Help create a cleaner future by controlling industrial emissions.
See more

Ports & Airports

Make your transport more sustainable by monitoring its emissions.
See more
Construction

Construction

Improve the sustainability of your works by measuring their impact on air quality.
See more
Mining

Mining

Monitor your mining operations to extract resources sustainably.
See more
Research & Consultancy

Research & Consultancy

Investigate air pollution by combining cutting-edge technology and knowledge.
See more

We help you make better decisions with accurate air quality data.

Software

With our advanced air quality software Kunak AIR Cloud, you can easily analyse all the data collected by the Kunak AIR stations and generate reports for decision-making.

In addition, you can configure the deployed devices and have an alarm system that facilitates remote operation and maintenance of the network in an easy way.

Integrate the data collected by the network and stored by the server into public air quality platforms or third-party applications using the powerful API Rest.

If required, the API also allows you to integrate data from external sources to complement the information provided by the monitoring network and analyse all data on a single platform.

Specifications

Dimensions | Weight
200 x 153 x 185 mm | <2.3 kg
Enclosure
PMMA, polycarbonate and stainless steel
Operating temp. | RH
-20ºC to +60ºC | 0 to 99% RH
IP rating
IP65
Battery
Lithium 2.9Ah or 20Ah
External supply
7 – 12 Vdc. charger or 6 Vdc. solar panel
Autonomy
24/7 with solar panel or charger
Power consumption
0.08-0.55W (depending on configuration)
Communications
Cellular | Ethernet | Modbus RTU slave
GNSS
GPS and GLONASS
Built-in sensors
Temp. | Humidity | Atmospheric pressure | Dew point
Connectors
#1: Power 7V to 12V,
#2: Several options to choose from:
  • Option 1: Anemometer & Rain Gauge
  • Option 2: Modbus RTU master
  • Option 3: Sound meter
  • Option 4: Modbus RTU slave
  • Option 5: Ethernet
Avg. periods
From 10 seconds to a maximum of 24 hours
Sending periods
From 5 minutes to a maximum of 24 hours
SIM
Embedded eSIM and SIM holder

Certificate FCC Certificate CE Certificate RoHS

Trials & Test

Case studies

Power packs

  • Solar panel

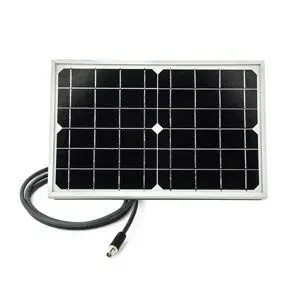

    Solar panel

    Solar panel

    The 6.3-volt high-efficiency monocrystalline solar panel is robust, waterproof (IP67) and has been designed for prolonged outdoor use in any environment.

    See more
  • Outdoor charger

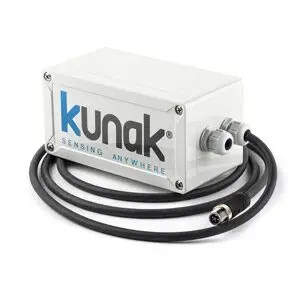

    Outdoor charger

    Outdoor charger

    Small, lightweight and waterproof and has been designed for prolonged outdoor use in any environment. To be used when the Kunak AIR stations are going to be installed outdoors.

    See more
  • Indoor Charger

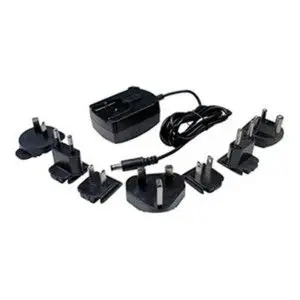

    Kunak AIR indoor charger

    Indoor Charger

    An indoor charger with global plugs is available for testing and verification.

    See more
Solar panel

Solar panel

The 6.3-volt high-efficiency monocrystalline solar panel is robust, waterproof (IP67) and has been designed for prolonged outdoor use in any environment.

See more
Outdoor charger

Outdoor charger

Small, lightweight and waterproof and has been designed for prolonged outdoor use in any environment. To be used when the Kunak AIR stations are going to be installed outdoors.

See more
Kunak AIR indoor charger

Indoor Charger

An indoor charger with global plugs is available for testing and verification.

See more

Meteo sensors

  • Sound level meter
    Sound level meter

    Sound level meter

    Low-cost wireless system for the monitoring of urban and industrial noise.

    See more
  • Mechanical anemometer

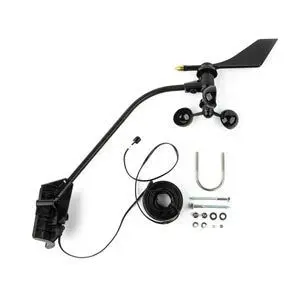

    Mechanical (Davis vantage PRO2)

    Mechanical anemometer

    It includes both wind speed and wind direction sensors.

    See more
  • Ultrasonic anemometer

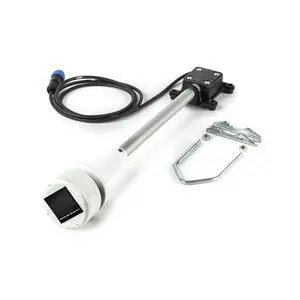

    Ultrasonic (Davis sonic-anemo DZP)

    Ultrasonic anemometer

    It includes both wind speed and wind direction sensors. It is an ultrasonic self-powered anemo- meter.

    See more
  • Rain gauge

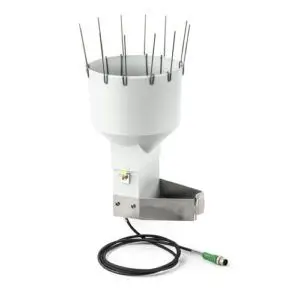

    Rain gauge K-PB-RAIN-A-01

    Rain gauge

    It is highly reliable, simple to maintain and simple to clean. It has prove good performance in all climates and conditions.

    See more
  • Pyranometer

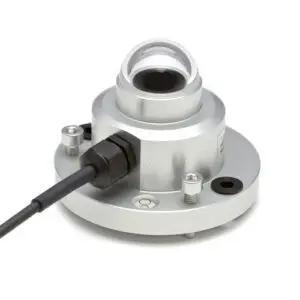

    Pyranometer K-PB-RAD-A-01

    Pyranometer

    The pyranometer measures solar radiation with a high-quality blackened thermopile protected by a dome.

    See more
  • Ultraviolet-A Sensor

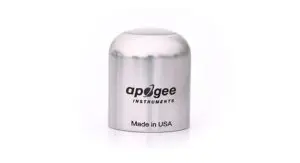

    Ultraviolet-A Sensor

    This UV-A sensors detect UV radiation from 300 to 400 nm and are calibrated in energy flux density units of watts per square meter.

    See more
  • Wet Bulb Globe Thermometer (WBGT)

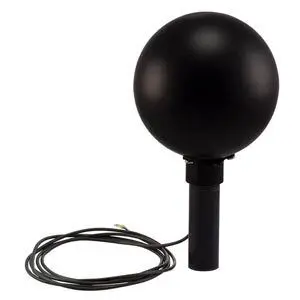

    Wet Bulb Globe Thermometer (WBGT)

    Wet Bulb Globe Thermometer (WBGT)

    The wet-bulb globe temperature (WBGT) is a measure of the heat stress in direct sun-light, which takes into account the temperature, humidity, wind speed (wind chill) and solar radiation.

    See more
Sound level meter

Sound level meter

Low-cost wireless system for the monitoring of urban and industrial noise.

See more
Mechanical (Davis vantage PRO2)

Mechanical anemometer

It includes both wind speed and wind direction sensors.

See more
Ultrasonic (Davis sonic-anemo DZP)

Ultrasonic anemometer

It includes both wind speed and wind direction sensors. It is an ultrasonic self-powered anemo- meter.

See more
Rain gauge K-PB-RAIN-A-01

Rain gauge

It is highly reliable, simple to maintain and simple to clean. It has prove good performance in all climates and conditions.

See more
Pyranometer K-PB-RAD-A-01

Pyranometer

The pyranometer measures solar radiation with a high-quality blackened thermopile protected by a dome.

See more

Ultraviolet-A Sensor

This UV-A sensors detect UV radiation from 300 to 400 nm and are calibrated in energy flux density units of watts per square meter.

See more
Wet Bulb Globe Thermometer (WBGT)

Wet Bulb Globe Thermometer (WBGT)

The wet-bulb globe temperature (WBGT) is a measure of the heat stress in direct sun-light, which takes into account the temperature, humidity, wind speed (wind chill) and solar radiation.

See more
