Case Study

Continuous ambient air monitoring at an oil & gas facility in Middle East

Oil and Gas company
Sector:

Need

Kunak was recently engaged by a major oil and gas Client in Middle East.

As the concession owner for a large oil field, it was essential that the Client was able to comply with the regulatory and their internal monitoring commitments.

In support of their obligations and their commitment to their Stakeholders, they identified the need for continuous ambient monitoring at a newly established production facility.

Kunak Technologies worked with the Client to understand their needs and to identify the right solution for them. The Client settled on the Kunak AIR Pro devices, which are capable of monitoring a number of pollutants and atmospheric parameters simultaneously and in real time.

For this particular Client, the objective was to monitor the impact of emissions on the surrounding community in terms of NO2, SO2, O3, CO and particulate matter levels, allowing the main sources of pollution to be monitored in real-time, ensuring that exceedances were able to be quickly and easily identified and then attended to in a timely manner.

The objective was to identify the emission impact on the surrounding community to meet EHS standards.
Ambient air monitoring at an oil & gas facilityAmbient air monitoring at an oil & gas facilityAmbient air monitoring at an oil & gas facility

Solution

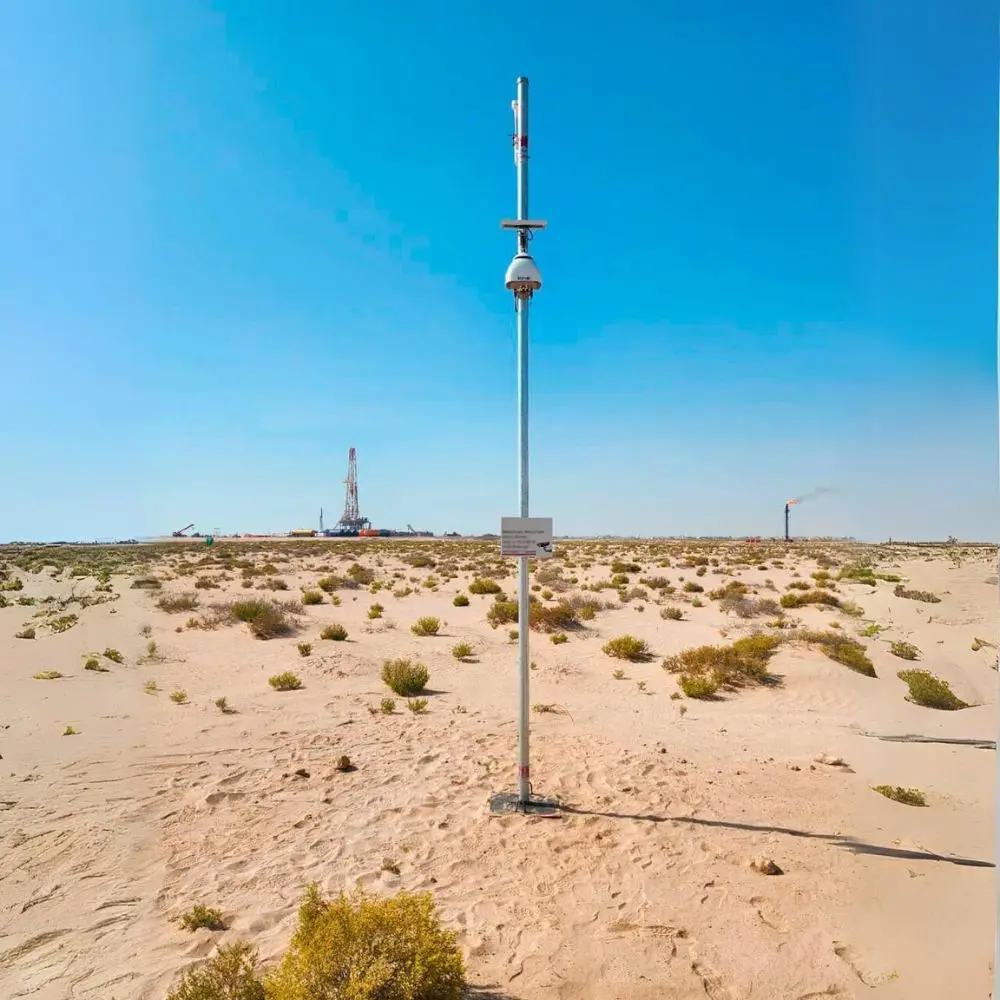

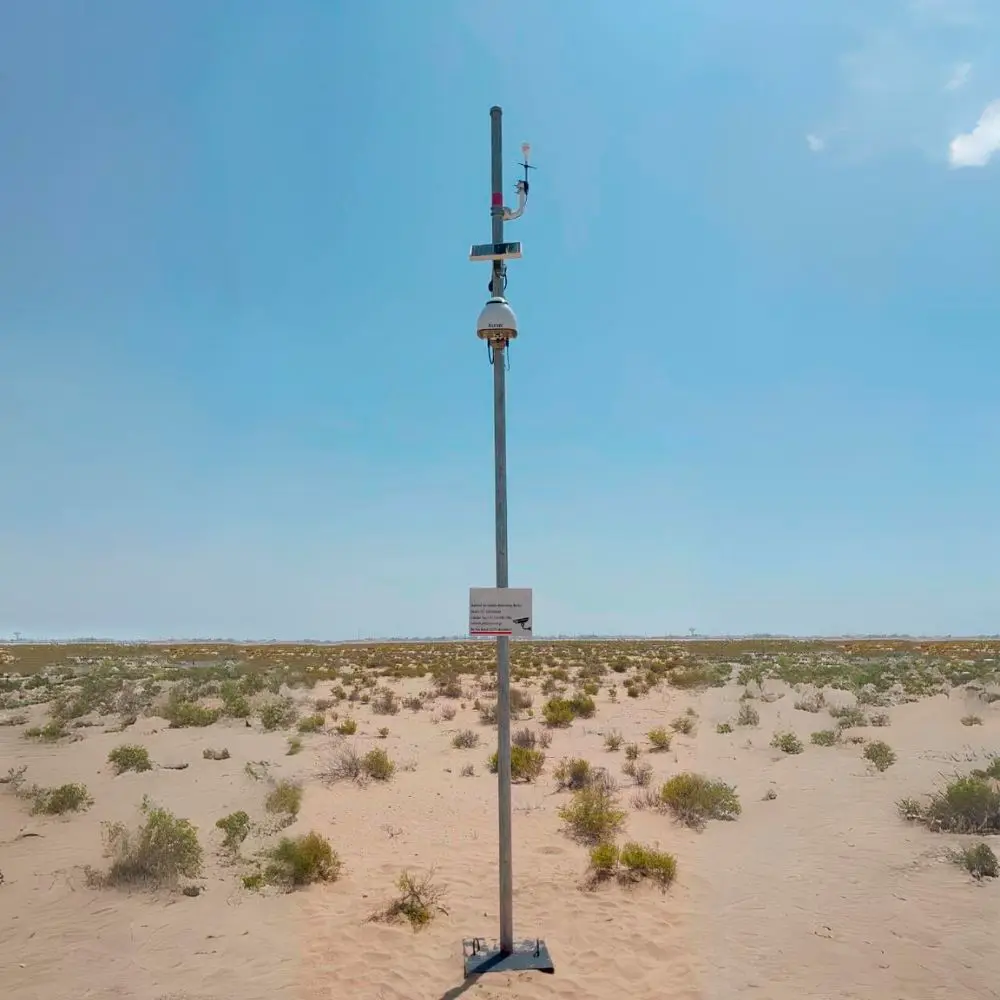

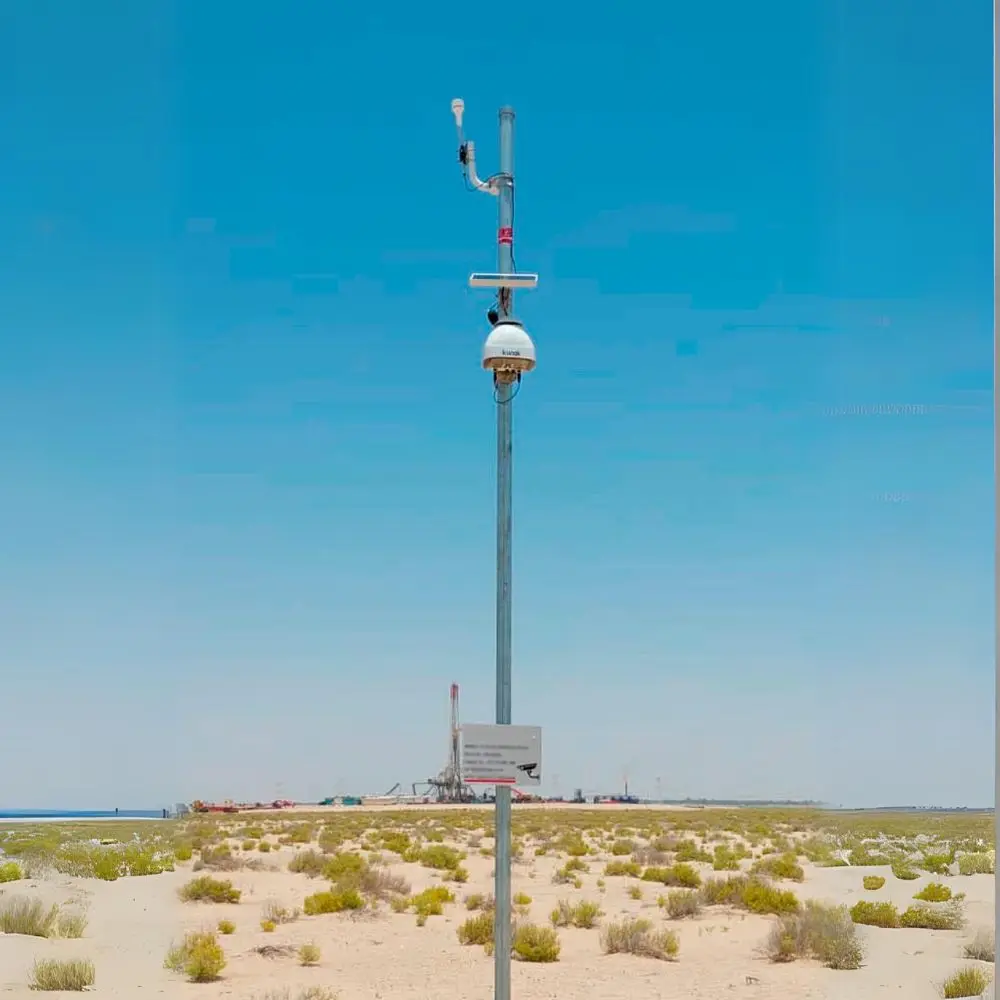

Kunak deployed an end-to-end monitoring network-based installation of 4 Kunak AIR Pro stations, powered by solar panels, rounded off with online real-time monitoring software accessible from anywhere leveraging 4G.

Kunak was responsible for providing the client with the installation and commissioning of the devices, the calibration of the sensors, and the periodic maintenance of the network.

The monitoring instruments supplied are also equipped with sonic anemometers capable of withstanding the strong gusts of wind that occur in the area.

Results

The client is able to ensure that critical ambient air data points are within the required limits across their concession area and that the data that Kunak AIR Pro provides is verifiable and demonstrates that their operations aren’t deteriorating the surrounding air quality. This ensures that their Stakeholders will continue to have confidence of the Client’s commitment to their health and wellbeing.

Our Client asserts their confidence and reliance on our state-of-the-art monitoring network, confirming that the tailor-made solution not only meets, but exceeds their expectations, and continues to be done with outstanding performance, accuracy, and resilience.

  • Identification of emissions sources and potential exceedances during the construction and the exploration phases.
  • Real-time concentrations for different pollutants.
  • Verifiable data to support compliance with regulatory & EHS performance standards.
  • Robust solution resistant to the harshest of environmental conditions.

Project details

Customer: Oil and Gas company

User: Oil and Gas company

Location: MMiddle East

Sector:

Year: 2023

Parameters:

  • SO2, NO2, O3 & CO
  • Particulate matter (PM1, PM2.5, PM4, PM10, TSP and TPC)
  • Wind speed and direction

Solutions

  • AIR ProProfessional air quality monitoring station
    Air quality monitor

    AIR Pro

    The most accurate air quality monitoring station

    SENSOR-BASED | BEST AVAILABLE ACCURACY

    Benefits

    • Multi-pollutant
    • Smart cartridge system
    • Fully autonomous
    • Real-time data
    • Proven accuracy
    See more
  • AIR CloudAir quality software
    Air quality software - Kunak AIR Cloud

    AIR Cloud

    Multipurpose air quality software for professionals

    REAL-TIME DATA | ALWAYS UPDATED

    Benefits

    • Secure and condifential
    • Air quality reporting
    • Advanced data analysis and visualisation
    • Reliable data guaranteed
    • Data sharing and integration
    See more
  • Sulphur dioxideReliable real-time data on SO2
    Sulphur_dioxide

    Sulphur dioxide

    Reliable information about sulphur dioxide

    GASPLUG TECHNOLOGY | PATENTED DESIGN

    Specs

    • Electrochemical
    • R2 >0.7
    • Range: 0-10,000 ppb
    • Resolution: 1 ppb
    • 24 months of operating life
    See more
  • Nitrogen dioxideReliable real-time data on NO2
    Nitreogen_dioxide

    Nitrogen dioxide

    Reliable information about nitrogen dioxide

    GASPLUG TECHNOLOGY | PATENTED DESIGN

    Specs

    • Electrochemical
    • R2 >0.85
    • Range: 0-12,000 ppb (Type A) | 0-500 ppm (Type B)
    • Resolution: 1 ppb (Type A) | 0.01 ppm (Type B)
    • 24 months of operating life
    See more
  • OzoneReliable real-time data on O3
    Ozone

    Ozone

    Reliable information about ozone

    GASPLUG TECHNOLOGY | PATENTED DESIGN

    Specs

    • Electrochemical
    • R2 >0.9
    • Range: 0-2,000 ppb
    • Resolution: 1 ppb
    • 24 months of operating life
    See more
  • Carbon monoxideReliable real-time data on CO
    Carbon-monoxide

    Carbon monoxide

    Reliable information about carbon monoxide

    GASPLUG TECHNOLOGY | PATENTED DESIGN

    Specs

    • Electrochemical
    • R2 >0.85
    • Range: 0-12,000 ppb (Type A) | 0-500 ppm (Type B)
    • Resolution: 1 ppb (Type A) | 0.01 ppm (Type B)
    • 24 months of operating life
    See more
  • Particulate MatterReliable real-time data on suspended particles

    Particulate Matter

    Reliable information about particulate matter

    GASPLUG TECHNOLOGY | PATENTED DESIGN

    Specs

    • Optical particle counter
    • Up to R2 >0.9
    • Range: 0-1,000 | 0-2,000 | 0-10,000 ppb
    • Resolution: 1 μg/m3
    • 24 months of operating life
    See more
