1. Overview

KunakCloud is a cloud-based platform which offers a complete set of services associated to KUNAK devices: from data storage and visualization to remote control, management and configuration.

KunakCloud REST API is meant to offer programmatic access to the data captured by KUNAK devices. Through a user-friendly API, you can get the stored information of your devices or even change their configuration remotely.

The main idea of this API is to offer Kunak's customers a way to replicate data into their systems so they can get the most of our devices and go beyond KunakCloud functionalities and develop their own ones.

User documentation guidelines:

o    Every method request must include the authentication information in the HTTP header as indicated in the section 'All the timestamps in this API use the UTC zone. It is the responsibility of the programmer using this API to parse these timestamps to the desired format and time zone.

o    Access and security'. This information is omitted in this document in every described request for simplicity purposes.

o    Pay attention to special characters like whitespaces in device or element tags. Follow URL encoding rules (https://en.wikipedia.org/wiki/Percent-encoding). For example, a white space (' ') is encoded as %20.

o    Comments are indicated using a double slash ('//'). They are used within JSON responses or JSON input data just for explanation purposes.

o    Variables included within the text are expressed using the notation {variable_name}.

o    All the timestamps contained in this document use UTC as a time reference.

2. Glossary

API (Application programming interface): an abstraction layer consisting of functions and processes –each of them with inputs and outputs clearly defined- to be used by other software.

JS (JavaScript programming language): the most famous language for front end dynamic web development.

JSON (JavaScript Syntax Notation): a simple file format that uses human-readable text. This is the chosen format for inputs and outputs in this API.

REST: software architecture style that defines a set of rules to build web services based on a set of uniform and predefined requests/responses.

Device: any Kunak product connected to the cloud.

Location: virtual site created by the user to analyse location data without taking into account the devices that have passed through the place. Allows you to manage your data by locations by assigning devices to specific spots.

SN: serial number. Unique id assigned by Kunak to all its devices.

Element: a measurable part of a Kunak device. For example, a sensor or the device's battery or signal levels.

Actuator: a part of the device that allows executing an action on a device, for example opening a valve.

Operational parameter: a parameter whose value can affect the operation of a device. This value can be of different types: number (integer or decimal), text or binary. The operational parameters can belong to a Kunak device or an external one connected through communication protocols such as Modbus.

Sending period: the time between consecutive connections of a device.

Storage/sampling period: the time between consecutive samples of an element

Start time/end time: beginning and end of connections and samples. The device won't send or capture data beyond these times.

x0, x1, x2: coefficients of the polynomial used to approximate the element response if it works in raw mode

Decimal(x,y): a decimal number with x digits and y decimal places

Max and min threshold: whenever an element's read exceeds them under certain persistence conditions, action will be triggered (register an event, send an email, etc.).

‘next_’ (parameter preceded by ‘next’): this value will be assigned –and queued until then- to the device's parameter in the next communication cycle with the device

Persistence: consecutive times that an element value has to overcome its threshold to activate an alarm (KunakCloud web and email notification)

Heartbeat: indicates whether the node is alive or not based on the next estimated connection which depends on the last connection and the current sending period.  Set this parameter to true if you want to get email notifications and see a red node status in KunakCloud's web when the node hasn't been able to connect in the next estimated period. If you turn off a device, you should set this parameter to false.

Heartbeat: checking sequence that the Kunak Cloud platform makes with every device to corroborate whether is active or not. Registered once when the device has not connected within the estimated time interval (last connection + sending period + network offset). Once a device connects again, its heartbeat alarm is disabled.

Warning: events generated by the devices when the sensor threshold is reached. It is registered when as many consecutive reads as the configured persistence exceed the configured thresholds. Once the samples no longer exceed the thresholds, alarms are disabled.

Alarm: events generated by the Kunak Cloud to help with the operation of the devices. Inform of heartbeat, battery drain, broken sensors, lack of data, etc.

Preheating: required time by the sensor to meet the right conditions to start working properly.

Virtual device: a non-standard device provided by the client that will use KunakCloud as its web platform. These devices have their own structure, settings, and data. All this information must be inserted into the KunakCloud's database with special methods explained in section 7.6 'Virtual device methods'.

Particle sensor low power: power mode implemented to improve the battery duration of the device when is solar powered.

Shutdown charge under: threshold for device’s charger voltage level under which the device is suspended. The device stays suspended until it detects that charge voltage level is back above the threshold.

3. Quickstart guide

This section covers the minimal information needed to make and understand the first HTTP request to KunakCloud REST API.

3.1 Data model and format

With this API, it is possible to request information from users, devices, elements, actuators, and operational parameters. A user account can have several devices associated with, each device giving access to its different elements, actuators, and operational parameters. Some settings of devices, elements, actuators, and operational parameters can be edited programmatically to automatize the systems within the Kunak devices are integrated with.

Besides the settings, it is possible to extract historical data form elements in the form of samples or alerts. On the other hand, operational parameters' configuration updates can also be collected as historical data which can be useful to manage a machine.

This API uses the JSON text format as input and output format and all the timestamps are UTC.

More detailed information in the sections 'Example of use' and 'Data and time format'.

3.2 Access and authentication

To access this API, a valid KunakCloud account must be used. All the cloud services of Kunak can be accessed with a single account (web, API REST) provided that the account has the required permissions.

This API comes in the form of an HTTP interface, so it is possible to request the data stored in KunakCloud using standard methods like HTTP GET or POST. To request data, the user must be authenticated using HTTP basic authentication with the username and password of a valid KunakCloud account.

There is a burst (10 requests per second) and a monthly limit for requests per account. Take both limits into account upon programming your applications (exception and error handling).

Remember that every Kunak account has a set of enabled permissions. Besides the web services permission, specific ones are required to execute some requests.

More detailed information in the sections '6.Access and security', '7.Service limits and restricted operations' and '8.Exception and error handling'.



3.3 Your first request (with postman)

Before writing your first line of code to try this API, it is advisable to test some requests with a software tool that supports the HTTP protocol. This way, it is possible to check quickly everything is up and running. There are many tools out there, but we will provide an example using Postman, a free software tool. A postman collection file containing all the requests can be found in ‘Support’ area of the KunakCloud web. The collection must be imported to the Postman software once it’s installed.

This collection classifies requests in user method, device methods, element methods, and operational parameters methods. The left column shows this classification as an expandable/collapsible tree map.

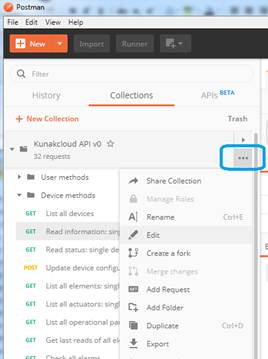

Figure 1 – Postman: request collections

Every collection allows the configuration of global variables which ease the reutilization of some values. In this case, variables like device id, element id, user, and password are set to avoid writing them continually. Variables are notated like this: {{variable name}}. To edit these variables, click on the button highlighted in the Figure 2 – Postman: Edit postman.

Figure 2 – Postman: Edit postman

Update the values of the tab ‘Variables’ with:

o    User_id: the name of the account to accede (minimum required)

o    Password: the password of the account (minimum required)

o    Device_id: S/N of the device to ask for info

o    Element_id: Name of the element to take info

o    Op_param_id: name of the operational parameter (if needed)

o    Actuator_id: name of an actuator (if needed)

o    Start_ts: Timestamp in milliseconds of the first value to request

o    End_ts: Timestamp in milliseconds of the last value to request

o    Number: Number of values asked

o    url_prefix: prefix of the URL for request the info. It will be always https://kunakcloud.com/openAPIv0/v1/rest

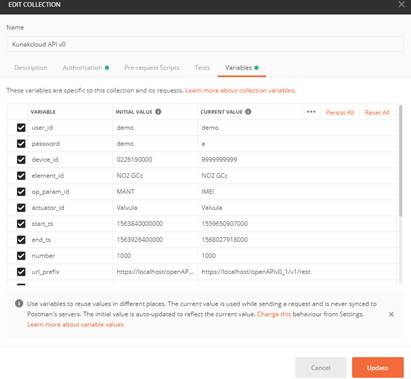

Figure 3 – Postman: Variables tab

Now you are ready to get the information of a device by selecting the 'Read information: single device' GET request. A new tab to the right of your collection column will appear. Let's see what happens when clicking on 'Send':

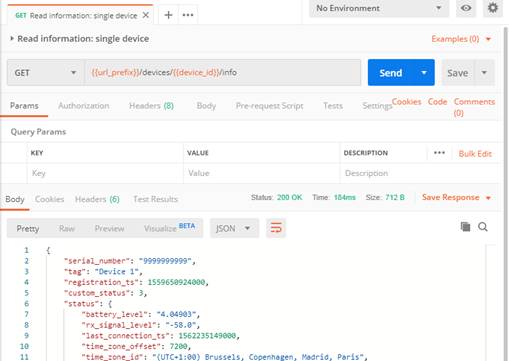

Figure 4 – Postman: specific request

Congratulations! A JSON response containing information of the requested device should have been received. If you don't get any response, check again your configuration (global vars, valid user and password, the serial number of a device associated with the authenticated account).

Once you have a deeper knowledge, you are ready to program your applications using the methods in sections 9.API methods for Kunak devices.

In the next section you can find examples of how to program the API. *Note: as you can see, the url uses the global vars {{url_prefix}} and {{device_id}}. You can also check the 'Authorization' tab (next to 'Params', top left) and see that the value 'Inherit auth from parent' is selected. This value is also selected for the parent folder ('Device methods') that inherits it from the collection global vars.

3.4 Example of use

3.4.1 Get sensors reads of all devices

Kunak devices have two core time settings that must be taken into account:

·         The sensor's sampling period.

·         The device's sending period.

A sensor sample will be stored every sampling period per sensor and all the collected/stored samples of every sensor will be sent every sending period. Thus, the process that requests data using the KunakCloud REST API must wait for certain time (sending period + communications offset + data processing/storage) between consecutive calls to the API in order to get new data from the desired device. It can be a scheduled script (e.g. crontab in Linux systems) waiting the already mentioned time between executions.

To avoid calls without data, you must save the last connection date in order to compare it with the actual. If it matches, nothing more must be done, if it has changed it means that there are new data to be download from the last date of the last datapoint saved previously.

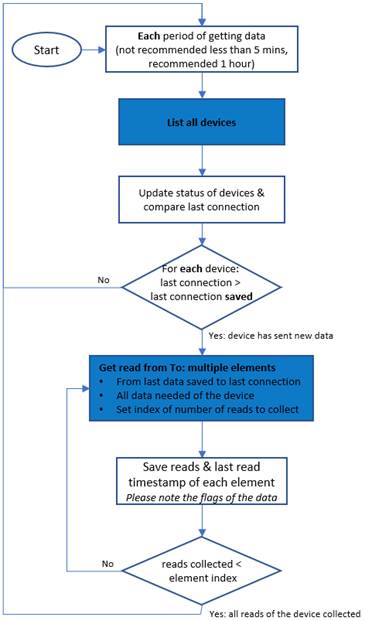

Figure 5 – Flow chart for data replication

Do not repeat the data collection process every very short period of time. The devices only send new data every configured "sending period". Minimum delay recommended of 5 minutes, delay recommended of 30 minutes.

To avoid getting 'Too many requests per second' and lose or repeat requests, this script must include delays. Since the limit is currently set to X calls per second per account, a good idea could be doing blocks of X calls to get the reads of X device and add a delay of one second after this block. Once the reads from those X devices have been retrieved, repeat it with the X following ones.

See the API limits at 7.1 API limits section.

In order to get the most useful and correct data, it is recommended that once a day make the call of the validation log. This is because there are some validation flags that are processed in different periods: instantaneous, hourly, daily, weekly.

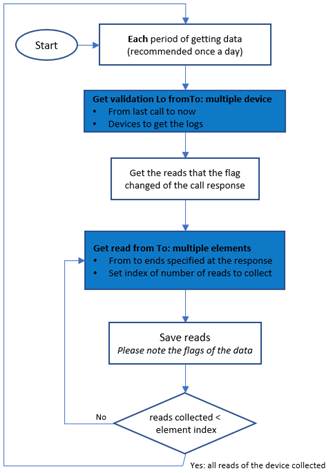

Figure 6 – Flow chart to get validations flag

4. Data model

KunakCloud applies a simple data hierarchy based on the following key concepts:

o    Account: a person or program accessing KunakCloud. There are two types of accounts in KunakCloud:

·         Organization: the top account of a company. It contains business information like company name, address, contact email address and fiscal identification. It could have special permissions like creating more accounts or registering devices. This is the recommended account for companies that have bought their first devices.

·         User: a basic account. It has limited permissions: it can't create other accounts or register devices. This is the recommended account for workers of a company or demonstration purposes.

o    Device: your data capturing device, identified by a unique serial number plus a part number combination. Every device has several elements that define the device type (standard, air quality, opc…).

o    Element: a measurable element (battery, radio signal level, sensor, counter, switch…)/a sensor whose value along time is important. Kunak Cloud stores historical data for every element. Each device usually has multiple elements. Each element is identified by a tag.

o    Operational parameter: a parameter whose current/last value is important. Typical operational parameters could be additional device identification information, machine working mode conditions and every new custom editable parameter to be added by the user. Each device usually has multiple operational parameters. Each parameter is identified by a tag.

o    Actuator: a component of the device which is responsible for controlling another device or system. Actuators are only available on some Kunak devices. Each device can have multiple actuators. Each actuator is identified by a tag.

o    Data: element samples/reads. Every read is timely referred and can be geographically referred by using an optional GPS module included in some KUNAK devices. Each element can have multiple reads stored at KunakCloud with only one value per timestamp and a validation flag.

o    Warning: event triggered by the device when some conditions are met. Those conditions are specific for each element and occur when sensor reads exceed thresholds (threshold warnings).

o    Operation Alarms: Events trigged by the cloud after an analysis of the data. Those alarms can be from battery discharging, uncalibrated sensor or devices failing to connect within the estimated communications windows (heartbeat alarms).

In summary, Kuna Cloud’s data hierarchy is as follows:

Figure 7 – Simplified data model

A Kunak device can have connected elements and actuators and a series of operational parameters.

Elements have associated historical data and alarms. They are the logical representation of a sensor (analog or digital input that captures data every sampling period) so they have associated historical data.

Actuators have a state and scheduled actions can be set at any time. They are the logical representation of an actuator (an output that can be connected to other systems as input to control them).

Operational parameters are related to 1) additional attributes for any device or 2) working/limit conditions of a machine connected to the Internet through a Kunak M2M or Industry card. They can be queried or updated at any moment. Some operational parameters are periodically updated so they can have historical data associated.

A user can manage other users: it's possible to create, edit or delete subuser accounts, link/unlink devices, and edit permissions. Not all users can create more users since there are 4 user levels to avoid infinite recursion:

o    Level 1 and 2: these users can create other manager users (levels 2 and 3 respectively). These levels fall into a manufacturer/distributor role.

o    Level 3: this user can create only final users (level 4). This level falls into a final customer company role.

o    Level 4: this user cannot create more users. This level falls into a user from a final customer company.

Users can share access to a device. A device contains elements (sensors), actuators and operational parameters.

User's hierarchy is as follows:

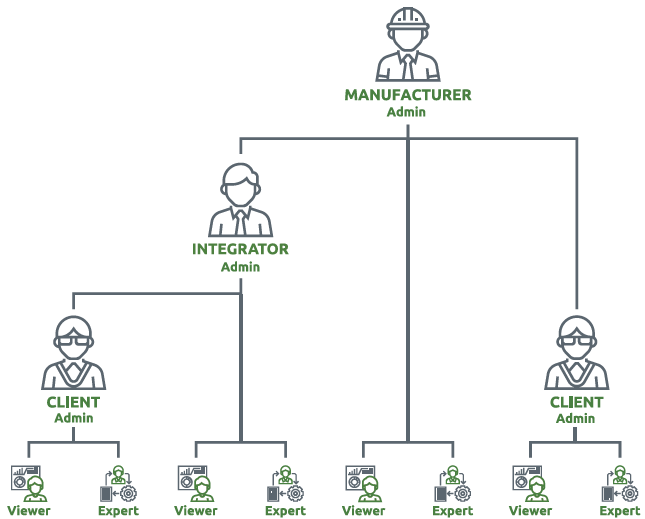

Figure 8 – User hierarchy

5. Data and time format

All API requests and responses use JSON as the data format. JSON (JavaScript Object Notation) is a light and easy to write and read format for data exchange. JSON is widely used as a standard format in web services; it has much less overhead than XML and it is easier to parse.

All the timestamps in this API use the UTC zone. It is the responsibility of the programmer using this API to parse these timestamps to the desired format and time zone.

6. Access and security

In KunakCloud REST API, every message is sent over HTTPS. This ensures that messages are sent using an encrypted channel. Users must be authenticated to send and receive messages using KunakCloud REST API.

The same restrictions that any account will have at the KunakCloud platform are applied at the REST API.

6.1 Authentication

The current authentication system consists of sending two fields inside the HTTP header: your KunakCloud’s user and password. This well-known process is called 'basic authentication'. These fields should be included in the 'Authorization' field of the HTTP header:  "Authorization: Basic " followed by the Base64 codification of the string "user:password".

Example:

Authorization: Basic Y2hhbmdlOmNoYW5nZQ==

More information in https://en.wikipedia.org/wiki/Basic_access_authentication

7. Service limits and restricted operations

7.1 API limits

Every KunakCloud account with access to the REST API has the following limits:

o    Burst limit: 10 requests per second. Once this limit is reached, a 'Too many requests per seconds' message with code 429 will be received as an HTTP response.

o    Monthly limit: every account has a monthly limit of 10,000 API calls. Once this limit is reached, a 'Monthly usage has been exceeded' message with code 429 will be received as a response. You can increase this limit with API call packages contacting Kunak.

o    Max reads per call: each call has a limit of maximum data that can provide. For each call can be different, the limit is specified in each call of this document.

To avoid large and slow responses, some requests (e.g. get reads or events) contain an input parameter called 'number' that limits the size of responses to improve application usability and response times.

7.2 Requests with specific permissions

Besides the API limits, every KunakCloud account has a set of additional permissions that restrict the available requests. Those additional permissions will be detailed in the subsection 'Request' for all the requests that require them.

8. Exception and error handling

When programming applications that consume the KunakCloud REST API, some exceptions and errors can happen both in the client and the server-side. To deal with those exceptions and errors on the client-side, some recommendations are given in the following paragraphs.

8.1 Too many requests

If an application calls the REST API too many times per second, a 'Too many requests per second' response with a 429 code will be received. Since this response contains no useful data (just the error message), some device data can be lost in a client application. For example, a classic line chart could contain information gaps within the periods associated with these erroneous responses.

To avoid this problem, just add delays every X request where X is the maximum number of requests per second supported by the KunakCloud REST API. For example, do X requests, wait 1 second and do again X requests, repeating this process many times needed. And do not forget to check the response code of every request in the application's source code before skipping to the next request. This way, all data can be collected, and your application will work smoothly.

See the API limits at 7.1 API limits section.

8.2 Bad requests

Malformed URLs and wrong input data are the main causes of erroneous responses that can include error messages detailing the error cause or even empty data.

Error messages (a 404 code response, 'Resource not found') will be received as response when requesting a resource with a bad URL syntax (e.g. a method that doesn't exist).

Empty messages (a 200 code response, 'OK', with empty JSON objects or arrays) will be received as response when the requested device, element or parameter don't exist within the context of the authenticated account or requested device.

Wrong input data like the one included in the POST methods will lead to error messages (a 400 code response, 'Bad request').

8.3 Error messages and codes

KunakCloud REST API uses the standard HTTP response codes (see detailed information in this link). The following table shows the different error codes used by KunakCloud REST API:



* Note: upon getting this response, please contact Kunak at [email protected] giving us information about this issue so we can examine and fix it.

9. API methods for Kunak devices

There are multiple methods/functions, split into several types depending on the application context: user, devices, elements or operational parameters. It is important to note for the upcoming subversion updates that every method starts with the url format: openAPIv{main version}/v{subversion}/rest/. For the API described in this document (REST API v0.1), {main version} = 0 and {subversion} = 1.

9.1 User methods

9.1.1 Get info

It returns a summary containing the settings and service usage of the requested user. The requested user could be the currently authenticated user or one of the users created from this user. No security credentials (password) are included in the response.

9.1.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/users/<user_id>/info

o    HTTP method: GET

9.1.1.2 Request parameters

Table 2 - Read information: single user. Request parameters

9.1.1.3 Sample request

https://kunakcloud.com/openAPIv0/v1/rest/users/demo_user/info

9.1.1.4 Response codes

Table 3 - Read information: single user. Response codes

9.1.1.5 Response content

{

    "level": 4,

    "account_type": "User”,

    "account_profile": "The Expert",

    "name": "Demo",

    "surname": "User",

    "email": "[email protected]",

    "company": {},

    "permissions": {

         "mobile_app": 1,

        "device_configuration": 1,

        "check_warnings": 1,

        "operational_params_config": 1

    },

    "limits": {

        "api_requests": 10000

    },

    "usage": {

        "api_requests": 342,

        "devices": 10,

    }

}

9.1.2 Get device status of direct customers users

Returns a summary containing the information of all users based on the specified user and the status of the devices linked to each user. No security credentials (password) are included in the response.

9.1.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/users/<user_id>/customerDevices

o    HTTP method: GET

9.1.2.2 Request parameters

Table 4 – Get device status of direct customers. Request parameters

9.1.2.3 Sample request

https://kunakcloud.com/openAPIv0/v1/rest/users/demo_user/customerDevices

9.1.2.4 Response codes

Table 5 – Get device status of direct customers. Response codes

9.1.2.5 Response content

[

    {

        "id": "User",

        "name": "User name",

        "surname": "User surname",

        "company": {

            "business_name": "Busine",

            "cif": "33333",

            "email": "[email protected]",

            "address": "postal adress",

            "phone": "+66666666",

            "clientNum": "2223"

        },

        "devices": {

            "ok": 0,

            "operation_alarm": 0,

            "alarm": 1,

            "heartbeat": 0,

            "shutdown": 0

        }

    },

]

9.1.3 List device states

It returns a summary containing the possible states a device can have and its corresponding colour in Kuank Cloud.

9.1.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/users/<user_id>/listDeviceStates

o    HTTP method: GET

9.1.3.2 Request parameters

Table 6 – List device states. Request parameters

9.1.3.3 Sample request

https://kunakcloud.com/openAPIv0/v1/rest/users/demo_user/listDeviceStates

9.1.3.4 Response codes

Table 7 – List device states. Response codes

9.1.3.5 Response content

[

    {

        "id": "0",

        "tag": "ok",

        "color": "#009045"

    },{

        "id": "1",

        "tag": "shutdown",

        "color": "#808080"

    },{

        "id": "2",

        "tag": "alarm",

        "color": "#f7cb1b"

    },{

        "id": "3",

        "tag": "heartbeat",

        "color": "#d6270d"

    },{

        "id": "4",

        "tag": "operation alarm",

        "color": "#f35497"

    }

]

9.2 General Methods

The states of a device or location can be:

·         [-1]  Not devices (White): Only for locations. No devices assigned to the location.

·         [0]  OK (Green): Device connected without alarms or warnings. The device has connected during the estimated time interval (last connection + sending period + wireless communications offset).

·         [1]  Off (Grey): Device switched off correctly by the user or heartbeat not active.

·         [2]  Warning (Yellow): The device is connected but has warnings that must be attended due to a configured threshold being exceeded.

·         [3]  Offline (Red): The connection with the device was lost. Only works when the device’s heartbeat is active and when the device does not connect within the estimated communication window (last connection date + [sending period x persistence] + communications offset). This could be caused by coverage (unreachable or too slow network) or device problems.

·         [4]  Alarms (Pink): Device connected but has operation alarms to be attended.

Since locations group the information of several devices that may be assigned to them, locations state is represented by the most critical state of the devices assigned to it.

9.2.1 List all devices

It returns a device list with all the devices that the current requested user can access to and their current status. There are 5 status types sorted by ascending gravity in case of problems:

With this method it's possible to get all the devices of a direct client (subuser) in KunakCloud platform.

9.2.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/list/<user_id>

o    HTTP method: GET

9.2.1.2 Request parameters

Table 8 - List all devices. Request parameters

9.2.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/list/demo (for user 'demo')

Or

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/list/demo?filter=all

9.2.1.4 Response codes

Table 9 - List all devices. Response codes

9.2.1.5 Response content

[

    {

        "serial_number": "9112160001",

        "tag": "Device 1",

        "status": 1,

        "last_connection_ts": 1614275317000,

        "location": {

            "latitude": "42.753000",

            "longitude": "-1.633157"

        }

    },

    {

        "serial_number": "9230160001",

        "tag": "Device 2",

        "status": 1,

        "last_connection_ts": 1614275317000,

        "location": {

            "latitude": "43.000000",

            "longitude": "-1.000000"

        }

    },

    {

        "serial_number": "9230160002",

        "tag": "Device 3",

        "status": 1,

        "last_connection_ts": 1614275317000,

        "location": {

            "latitude": "43.000000",

            "longitude": "-1.000000"

        }

    },

    {

        "serial_number": "9000990005",

        "tag": "Device 4",

        "status": 2,

        "last_connection_ts": 1614275317000,

        "location": {

            "latitude": "42.806805",

            "longitude": "-1.652392"

        }

    }

]



9.2.2 Read information: single device

It returns the configuration and general information of the requested device.

9.2.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/info

o    HTTP method: GET

9.2.2.2 Request parameters

Table 10 - Read information: single device. Request parameters

9.2.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9112160001/info (device with SN 0000000001)

9.2.2.4 Response codes

Table 11 - Read information: single device. Response codes

9.2.2.5 Response content

{

    "serial_number": "9112160001",

    "tag": "Device 1",

    "registration_ts": 1458309571000,

    "custom_status": 1,

  "versions": {

    "firmware_version": "1.255.014",

    "part_number": "K-A3-14-1.01"

  },

  "communications_info": {

    "sim_iccid": "7777777777777777",

    "operator": "BASE",

    "network_mode": "LTE",

    "sim_slot_in_use": "internal"

  },

    "status": {

        "battery_level": "0.128",

        "rx_signal_level": "-102",

        "last_connection_ts": 1465461023000,

        "time_zone_offset": 7200,

        "time_zone_id": "(UTC+1:00) Brussels, Copenhagen, Madrid, Paris",

        "sending_period": 60,

        "heartbeat": false,

        "heartbeat_alarm_persistence": 1,

        "particle_sensor_low_power": false,

        "shutdown_charge_under": ""

    },

    "location": {

        "latitude": "42.753000",

        "longitude": "-1.633157",

        "altitude": "0.000000",

        "description": "Equipo P"

    },

    "next_config": {

        "next_sending_period": 300,

        "next_particle_sensor_low_power": "",

        "next_shutdown_charge_under": ""

    },

 "type": "DEFAULT",

   "cartridges": [

       {

   "position": 1,

           "cartridge_serial_number": "9999999999",

           "cartridge_part_number": "K-NO-A-01",

           "element_name": "NO GCc",

           "factory_cal_date": "2021-01-22",

           "expiry_date": "2023-01-22",

           "last_cal_date": "2022-01-10",

           "cal_conditions": "9.1 (C), 1001.4 (Hpa), 89 (%)"

        },

     ]

}

9.2.3 Read status: single device

It returns the current status of a device. There are 4 status types sorted by ascending gravity in case of problems:

9.2.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/status

o    HTTP method: GET

9.2.3.2 Request parameters

Table 12 - Read status: single device. Request parameters

9.2.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9112160001/status

9.2.3.4 Response codes

Table 13 - Read status: single device. Response codes

9.2.3.5 Response content

n (where n=0,…, 4)

9.2.4 List all elements: single device

It returns a list with the tag of all the device’s elements.

9.2.4.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements

o    HTTP method: GET

9.2.4.2 Request parameters

Table 14 - List all elements: single device. Request parameters

9.2.4.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/elements (device with SN 0000000001)

9.2.4.4 Response codes

Table 15 - List all elements: single device. Response codes

9.2.4.5 Response content

[

    "Analog_1",

    "Battery",

    "Digital_1",

    "Signal",

    "Temp"

]

9.2.5 List all elements: single device with details

It returns a list with all the device’s elements.

9.2.5.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elementsDetails

o    HTTP method: GET

9.2.5.2 Request parameters

Table 16 - List all elements: single device. Request parameters

9.2.5.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/elementsDetails (device with SN 0000000001)

9.2.5.4 Response codes

Table 17 - List all elements: single device. Response codes

9.2.5.5 Response content

[

{

    "tag": "Analog_1",

    "unit": "l",

    "x0": "0.000000",

    "x1": "0.001000",

    "x2": "0.000000",

    "max": "4.400000",

    "min": "3.400000",

    "persistence": "1",

    "sampling_period": "60",

    "start_time": "00:00:00",

    "end_time": "23:59:59"

},



{

    "tag": "Analog_2",

    "unit": "l",

    "x0": "0.000000",

    "x1": "0.001000",

    "x2": "0.000000",

    "max": "4.400000",

    "min": "3.400000",

    "persistence": "1",

    "sampling_period": "60",

    "start_time": "00:00:00",

    "end_time": "23:59:59"

}

]

9.2.6 Read information: single element

It returns the information of the requested element.

9.2.6.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id>/info

o    HTTP method: GET

9.2.6.2 Request parameters

Table 18 - Read information: single element. Request parameters

9.2.6.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/elements/Battery/info (element with id='Battery' of device with SN 9999999999)

9.2.6.4 Response codes

Table 19 - Read information: single element > get info. Response codes

9.2.6.5 Response content

{

    "tag": "Battery",

    "unit": "V",

    "x0": "0.000000",

    "x1": "0.001000",

    "x2": "0.000000",

    "max": "4.400000",

    "min": "3.400000",

    "persistence": "1",

    "sampling_period": "60",

    "start_time": "00:00:00",

    "end_time": "23:59:59",

    "next_config": {

        "next_x0": "",

        "next_x1": "",

        "next_x2": "",

        "next_max": "",

        "next_min": "",

        "next_persistence": "",

        "next_sampling_period": "",

        "next_start_time": "",

        "next_end_time": ""

    },

    "config_technician": "",

    "serial_number": "",

    "model": "",

    "manufacturer": "",

    "decimal_places": "2",

    "last_read": {

        "value": 0.13,

        "ts": 1465461022000

    }

}

9.3 Configuration Methods

9.3.1 Update device configuration: single device

It configures the device general information. Two devices can’t share the same tag, so don’t repeat a tag as input request for another device or a 400-response code will be received.

9.3.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/config

o    HTTP method: POST

o    Required permissions: device configuration included at “The admin” and “The expert” profile.

9.3.1.2 Request parameters

Table 20 - Update device configuration: single device. Request parameters

9.3.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/config (device with SN 0000000001)

JSON input object:

{

    "tag": "Device1",

    "time_zone_id": 41,

    "sending_period": 300,

    "latitude": "42.754430",

    "longitude": "-1.637302",

    "altitude": "430",

    "description": "Device located on Noain",

    "heartbeat": true,

    "particle_sensor_low_power, ": true,

    "shutdown_charge_under": 5

}

9.3.1.4 Response codes

Table 21 - Update device configuration: single device. Response codes

9.3.1.5 Response content

For existing devices (empty object for non-existing ones):

{

    "serial_number": "9112160001",

    "tag": "Device 1",

    "registration_ts": 1458309571000,

    "status": {

        "battery_level": "0.128",

        "rx_signal_level": "-102",

        "last_connection_ts": 1465461023000,

        "time_zone_offset": 7200,

        "time_zone_id": "(UTC+1:00) Brussels, Copenhagen, Madrid, Paris",

        "sending_period": 60,

        "heartbeat": true,

        "heartbeat_alarm_persistence": 1,

        "particle_sensor_low_power, ": false,

        "shutdown_charge_under": ""



    },

    "location": {

        "latitude": "42.754430",

        "longitude": "-1.637302",

        "altitude": "430.000000",

        "description": "Device located on Noain"

    },

    "next_config": {

        "next_sending_period": 300,

        "particle_sensor_low_power, ": true,

        "shutdown_charge_under": "5"

    }

}

9.3.2 Update configuration: single element

It configures the requested element. This method has several constraints:

o    For specific Kunak products (AIR, Noise), some integrated sensors cannot be updated or used in other elements. For all products using the K-1xx as a core, the following tags are reserved:

·         Battery

·         Signal

·         GNSS Alt

·         GNSS Lat

·         GNSS Lon

·         GNSS HDOP

·         Temp

o    Two elements in the same device can’t share the tag, so don’t repeat this tag as an input parameter.

o    A new tag must be set together with its unit. The unit can be an empty string ("") for elements with no unit/magnitude.

9.3.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id>/config

o    HTTP method: POST

o    Required permissions: device configuration included at “The admin” and “The expert” profile.

9.3.2.2 Request parameters

Table 22 - Update configuration: single element. Request parameters

9.3.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/elements/Battery/config (element with id="Battery" of device with SN 9999999999)

JSON input:

{

    "tag":"generic sensor 1",

    "unit":"unit",

    "decimal_places":3,

    "x0":"2.222",

    "x1":"3.333",

    "x2":"4.444",

    "sampling_period":300,

    "max":"",

    "min":"",

    "persistence":9,

    "start_time":"10:30:00",

    "end_time":"22:30:00",

    "config_technician":"Bob",

    "serial_number":"0000",

    "model":"K100",

    "manufacturer":"Kunak"

}

9.3.2.4 Response codes

Table 23 - Update configuration: single element. Response codes

9.3.2.5 Response content

For existing elements (empty object for non-existing ones):

{

    "tag": "generic sensor 1",

    "unit": "unit",

    "x0": "0.000000",

    "x1": "1.000000",

    "x2": "0.000000",

    "max": "",

    "min": "",

    "persistence": "1",

    "sampling_period": "60",

    "start_time": "00:00:00",

    "end_time": "23:59:59",

    "next_config": {

        "next_x0": "2.222",

        "next_x1": "3.333",

        "next_x2": "4.444",

        "next_max": "",

        "next_min": "",

        "next_persistence": "9",

        "next_sampling_period": "300",

        "next_start_time": "10:30:00",

        "next_end_time": "22:30:00"

    },

    "config_technician": "Mikel",

    "serial_number": "0000",

    "model": "K100",

    "manufacturer": "Kunak",

    "decimal_places": "3",

    "last_read": {

        "value": -23675,

        "ts": 1465461022000

    },

    "operational_parameter": []

}

9.4 Reads Methods

Method to get the data of the Kunak devices. The data can be attached with validation flags information.

All data are classified with a flag providing information on their validity. The first status flag of a data is always T (temporary) when the device sends it to the cloud. After, the status of the data can be changed automatically by the Kunak Cloud or by hand by an operator through the validation tool of the cloud.

·         Automatic: when the cloud detects that the data is out of range instantly will change the state of the data to TI (Temporarily Invalid). The cloud analyses the data hourly, daily or weekly and can change the data to TI status in function of predefined cases. After, an operator needs to check the auto invalidations to change the status to I (Invalidated) or V (Valid)

·         Manual (validation tool): the operator will change the status of the data based on the requirements. It can validate (V), invalidate (I) the data or corrected (O).

These are the available validation flags:

Validation	Flag	Name	Description
Automatic	T	Temporary	Raw data
	TI	Temporary Invalid	Data auto invalidate by the Kunak Cloud software.
Manual	I	Invalid	Invalided data manually by an operator
	V	Valid	Confirmation of the validity of the data manually by an operator.
	O	Corrected	Data corrected in base to a manual calibration

Table 24 – Validation flags of the reads of a device

      The flag will only be set to GCc values in the case of gases and PM values for particles, remaining the GC and PM raw data as temporary (T), without applying any change other flag.

A code is attached describing the reason of the flag selected for each data. Normally, for a temporary (T), valid (V) and corrected (O) data, the reason will be 0. The reason is important when the data flag is Temporary invalid (TI) or Invalid (I) to specify what produced that invalidation.

Code just use at the API REST

Code reason	Reason
0	n/a
1	Calibration
2	Maintenance / Repair
3	Sensor Change
4	Broken sensor
5	Malfunction
7	Stabilization period
8	Inatallation / Relocation
9	Natural Event
10	Remote supervision
11	Other
12	Out of range
13	Miscalibrated

Table 25 – Reason why the readings of a device are invalidated

The temporarily invalid (TI) flag is set by the cloud automatically due to the following reasons:

Code reason	Reason	Applies to sensors	Type (hourly, daily, …)	Description
4	Broken sensor	Particles	Hourly	Particle sensor broken
5	Malfunction	Analog	Hourly	4-20mA Error
5	Malfunction	Particles	Hourly	Bad particle sensor air flow
5	Malfunction	Particles	Instantaneous	Bad particle sensor air flow
5	Malfunction	Gases	Instantaneous	Electronic error in the measure
5	Malfunction	Gases	Hourly	Electronic error in the measure
5	Malfunction	Particles	Hourly	Incorrect function of the particle sensor
5	Malfunction	Anemometer	Daily	Incorrect values of wind direction
5	Malfunction	Particles	Daily	Particle sensor obstructed
5	Malfunction	Gases	Hourly	Sensor broken
5	Malfunction	Gases	Hourly	Sensor broken or poisoned
5	Malfunction	Anemometer	Weekly	Sensor disconnected or broken
7	Stabilization period	Gases	Daily	Stabilization period
12	Out of range	Gases	Hourly	Ambient temperature outside the sensor working range
12	Out of range	Particles	Hourly	Humidity over 99%
12	Out of range	All	Instantaneous	Out of range
12	Out of range	Gases	Daily	Period of humidity out of range
12	Out of range	Gases	Hourly	Sensor saturated
9	Natural Event	Gases	Daily	High cross sensitivity gas is present in the air
9	Natural Event	Particles	Hourly	Possible presence of fog or water droplets

Table 26 – Automatic invalidation reason

9.4.1 Get reads from: single element

It returns the reads within the period [ts, +∞).

The response is limited to 4000 reads so it will return at most the first 1000 within the requested period. In order to collect all the reads within a complete period which contains more than 4000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method. Once the timestamps of the response exceed the upper timestamp of the desired period, calls should stop.

9.4.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id>/reads/from?ts=<ts>&number=<number>

o    HTTP method: GET

9.4.1.2 Request parameters

Table 27 - Get reads from: single element. Request parameters

9.4.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/elements/Battery/reads/from?ts=1528121429000 (From ts=1528121429000 for element tagged as 'Battery' in the device with SN 9999999999)

9.4.1.4 Response codes

Table 28 - Get reads from: single element. Response codes

9.4.1.5 Response content

[

    {

        "value": "15.170",

        "ts": 1528143051000,

        "validation": "T",

        “reason”: “0”

    },

    {

        "value": "2.925",

        "ts": 15281442451000,

        "validation": "T",

        “reason”: “0”

    },

    ...

    {

        "value": "4.990",

        "ts": 1528153051000,

        "validation": "T",

        “reason”: “0”

    }

]

9.4.2 Get reads fromTo: single element

It returns the reads within the period [{starTs},{endTs}].

The response is limited to 4000 reads so it will return at most the first 4000 within the requested period.  In order to collect all the reads within a complete period which contains more than 4000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method while keeping the ending timestamp. This way, user can obtain all the reads contained in the desired period.

9.4.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id>/reads/fromTo?startTs=<startTs>&endTs=<endTs>&number=<number>

o    HTTP method: GET

9.4.2.2 Request parameters

Table 29 - Get reads fromTo: single element. Request parameters

9.4.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/elements/AIRQ%20SHT%20T/reads/fromTo?startTs=1528121429000&endTs=1528207830000 (From ts=1528121429000 to ts=1528207830000 for element tagged as 'AIRQ SHT T' in the device with SN 9999999999)

9.4.2.4 Response codes

Table 30 - Get reads fromTo: single element. Response codes

9.4.2.5 Response content

[

    {

        "value": "15.170",

        "ts": 1528133051000,

        "validation": "T",

        “reason”: “0”

    },

    {

        "value": "2.925",

        "ts": 1528142451000,

        "validation": "T",

        “reason”: “0”

    },

    ...

    {

        "value": "4.990",

        "ts": 1528143051000,

        "validation": "T",

        “reason”: “0”

    }

]

9.4.3 Get reads until: single element

It returns the reads of an element within the period (-∞, {ts}].

The response is limited to 4000 reads so it will return at most the last 4000 within the requested period. This method is very useful to go through time in descending order (from recent to old reads). By setting {ts} to the current timestamp, a user could know the last {number} reads of a device.

9.4.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id>/reads/until?ts=<ts>&number=<number>

o    HTTP method: GET

9.4.3.2 Request parameters

Table 31 - Get reads until: single element. Request parameters

9.4.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/elements/AIRQ%20SHT%20T/reads/until?ts=1528207830000 (Until ts=1528207830000 for element tagged as 'AIRQ SHT T' in the device with SN 9999999999)

9.4.3.4 Response codes

Table 32 - Get reads until: single element. Response codes

9.4.3.5 Response content

[

    {

        "value": "15.170",

        "ts": 1528123051000,

        "validation": "T",

        “reason”: “0”

    },

    {

        "value": "2.925",

        "ts": 1528142451000,

        "validation": "T",

        “reason”: “0”

    },

    ...

    {

        "value": "4.990",

        "ts": 1528143051000,

        "validation": "T",

        “reason”: “0”

    }

]

9.4.4 Get reads from: Multiple elements

It returns the reads within the period [ts, +∞).

The response is limited to 4000 reads so it will return at most the first 4000 within the requested period. In order to collect all the reads within a complete period which contains more than 4000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method. Once the timestamps of the response exceed the upper timestamp of the desired period, calls should stop.

9.4.4.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id> /reads/from

o    HTTP method: POST

9.4.4.2 Request parameters

Table 33 - Get reads from: multiple elements. Request parameters

9.4.4.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/reads/from

JSON input object:

{

    "sensors": ["Battery"],

    "ts": 1528121429000

}

(From ts=1528121429000 for element tagged as 'Battery' in the device with SN 9999999999)

9.4.4.4 Response codes

Table 34 - Get reads from: multiple elements. Response codes

9.4.4.5 Response content

[

    {

        "sensor_tag": "Battery",

        "value": "15.170",

        "ts": 1528143051000,

        "validation": "T",

        “reason”: “0”

    },

    {

      "sensor_tag": "Battery",

        "value": "2.925",

        "ts": 15281442451000,

        "validation": "T",

        “reason”: “0”

    },

    ...

    {

        "sensor_tag": "Battery",

        "value": "4.990",

        "ts": 1528153051000,

        "validation": "T",

        “reason”: “0”

    }

]

9.4.5 Get reads fromTo: Multiple elements

It returns the reads within the period [{starTs},{endTs}].

The response is limited to 4000 reads so it will return at most the first 4000 within the requested period.  In order to collect all the reads within a complete period which contains more than 4000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method while keeping the ending timestamp. This way, user can obtain all the reads contained in the desired period.

9.4.5.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id> /reads/fromTo

o    HTTP method: POST

9.4.5.2 Request parameters

Table 35 - Get reads fromTo: multiple elements. Request parameters

9.4.5.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/reads/fromTo

(From ts=1528121429000 to ts=1528207830000 for element tagged as ‘Battery’ in the device with SN 9999999999)

JSON input object:

{

    "sensors": ["Battery"],

    "startTs ": 1528121429000,

   "endTs": 1528207830000

}

(From ts=1528121429000 for element tagged as 'Battery' in the device with SN 9999999999)

9.4.5.4 Response codes

Table 36 - Get reads fromTo: multiple elements. Response codes

9.4.5.5 Response content

[

    {

        "sensor_tag": "Battery",

        "value": "15.170",

        "ts": 1528133051000,

        "validation": "T",

        “reason”: “0”

    },

    {

      "sensor_tag": "Battery",

        "value": "2.925",

        "ts": 1528142451000,

        "validation": "T",

        “reason”: “0”

    },

    ...

    {

        "sensor_tag": "Battery",

        "value": "4.990",

        "ts": 1528143051000,

        "validation": "T",

        “reason”: “0”

    }

]

9.4.6 Get reads until: Multiple elements

It returns the reads of an element within the period (-∞, {ts}].

The response is limited to 4000 reads so it will return at most the last 4000 within the requested period. This method is very useful to go through time in descending order (from recent to old reads). By setting {ts} to the current timestamp, a user could know the last {number} reads of a device.

9.4.6.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id> /reads/until

o    HTTP method: POST

9.4.6.2 Request parameters

Table 37 - Get reads until: multiple elements. Request parameters

9.4.6.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/reads/until

JSON input object:

{

    "sensors": ["Battery"],

    "ts": 1528207830000

}

(Until ts=1528207830000 for element tagged as 'Battery' in the device with SN 9999999999)

9.4.6.4 Response codes

Table 38 - Get reads until: multiple elements. Response codes

9.4.6.5 Response content

[

    {

        "sensor_tag": "Battery",

        "value": "15.170",

        "ts": 1528123051000,

        "validation": "T",

        “reason”: “0”

    },

    {

      "sensor_tag": "Battery",

        "value": "2.925",

        "ts": 1528142451000,

        "validation": "T",

        “reason”: “0”

    },

    ...

    {

        "sensor_tag": "Battery",

        "value": "4.990",

        "ts": 1528143051000,

        "validation": "T",

        “reason”: “0”

    }

]



9.4.7 Get reads from grouped by timestamps: Multiple elements

It returns the reads within the period [ts, +∞).

The response is limited to 4000 reads so it will return at most the first 4000 within the requested period. In order to collect all the reads within a complete period which contains more than 4000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method. Once the timestamps of the response exceed the upper timestamp of the desired period, calls should stop.

9.4.7.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id> /reads/fromGroupByTs

o    HTTP method: POST

9.4.7.2 Request parameters

Table 39 - Get reads from grouped by timestamps: multiple elements. Request parameters

9.4.7.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/reads/fromGroupByTs

JSON input object:

{

    "sensors": ["'Battery", “Signal”],

    "ts": 1528121429000

}

(From ts=1528121429000 for element tagged as 'Battery' in the device with SN 9999999999)

9.4.7.4 Response codes

Table 40 - Get reads from grouped by timestamps: multiple elements. Response codes

9.4.7.5 Response content

[

    {

        "ts": 1528143051000,

        "Battery": {

                "value": "15.170",

                "validation": "T",

                   “reason”: “0”

         },

        “Signal”: ": {

                "value": "-100",

                "validation": "T",

                   “reason”: “0”

         }

    },

    {

       "ts": 15281442451000,

       "Battery": {

                "value": "2.925",

                "validation": "T",

                   “reason”: “0”

         },

        “Signal”: ": {

                "value": "-80",

                "validation": "T",

                   “reason”: “0”

         }

    },

    ...

    {

         "ts": 1528153051000,

         "Battery": {

                "value": "4.990",

                "validation": "T",

                   “reason”: “0”

          },

         “Signal”: ": {

                "value": "-88",

                "validation": "T",

                  “reason”: “0”

         }

    }

]

9.4.8 Get reads fromTo grouped by timestamps: Multiple elements

It returns the reads within the period [{starTs},{endTs}].

The response is limited to 4000 reads so it will return at most the first 4000 within the requested period.  In order to collect all the reads within a complete period which contains more than 4000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method while keeping the ending timestamp. This way, user can obtain all the reads contained in the desired period.

9.4.8.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id> /reads/fromToGroupByTs

o    HTTP method: POST

9.4.8.2 Request parameters

Table 41 - Get reads fromTo grouped by timestamps: multiple elements. Request parameters

9.4.8.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/reads/fromToGroupByTs

(From ts=1528121429000 to ts=1528207830000 for element tagged as ‘Battery’ in the device with SN 9999999999)

JSON input object:

{

    "sensors": ["Battery", “Signal”],

    "startTs ": 1528121429000,

   "endTs": 1528207830000

}

(From ts=1528121429000 for element tagged as 'Battery' in the device with SN 9999999999)

9.4.8.4 Response codes

Table 42 - Get reads fromTo grouped by timestamps: multiple elements. Response codes

9.4.8.5 Response content

[

    {

        "ts": 1528133051000,

        "Battery": {

                "value": "15.170",

                "validation": "T",

                   “reason”: “0”

         },

        “Signal”: ": {

                "value": "-100",

                "validation": "T",

                   “reason”: “0”

         }

    },

    {

       "ts": 1528142451000,

       "Battery": {

                "value": "2.925",

                "validation": "T",

                   “reason”: “0”

         },

        “Signal”: ": {

                "value": "-80",

                "validation": "T",

                   “reason”: “0”

         }

    },

    ...

    {

         "ts": 1528143051000,

         "Battery": {

                "value": "4.990",

                "validation": "T",

                   “reason”: “0”

          },

         “Signal”: ": {

                "value": "-88",

                "validation": "T",

                  “reason”: “0”

         }

    }

]

9.4.9 Get reads until grouped by timestamps: Multiple elements

It returns the reads of an element within the period (-∞, {ts}].

The response is limited to 4000 reads so it will return at most the last 4000 within the requested period. This method is very useful to go through time in descending order (from recent to old reads). By setting {ts} to the current timestamp, a user could know the last {number} reads of a device.

9.4.9.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id> /reads/untilGroupByTs

o    HTTP method: POST

9.4.9.2 Request parameters

Table 43 - Get reads until grouped by timestamps: multiple elements. Request parameters

9.4.9.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/reads/untilGroupByTs

JSON input object:

{

    "sensors": ["Battery", “signal”],

    "ts": 1528207830000

}

(Until ts=1528207830000 for element tagged as 'Battery' in the device with SN 9999999999)

9.4.9.4 Response codes

Table 44 - Get reads until grouped by timestamps: multiple elements. Response codes

9.4.9.5 Response content

[

    {

        "ts": 1528123051000,

        "Battery": {

                "value": "15.170",

                "validation": "T",

                   “reason”: “0”

         },

        “Signal”: ": {

                "value": "-100",

                "validation": "T",

                   “reason”: “0”

         }

    },

    {

       "ts": 1528142451000,

       "Battery": {

                "value": "2.925",

                "validation": "T",

                   “reason”: “0”

         },

        “Signal”: ": {

                "value": "-80",

                "validation": "T",

                   “reason”: “0”

         }

    },

    ...

    {

         "ts": 1528143051000,

         "Battery": {

                "value": "4.990",

                "validation": "T",

                   “reason”: “0”

          },

         “Signal”: ": {

                "value": "-88",

                "validation": "T",

                  “reason”: “0”

         }

    }

]

9.4.10 Get reads fromTo grouped by timestamps: Multiple devices, multiple elements

It returns readings from the indicated sensors and devices within the period [{starTs},{endTs}].

9.4.10.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/reads/fromToGroupByTs

o    HTTP method: POST

9.4.10.2 Request parameters

Table 45 - Get reads fromTo grouped by timestamps: Multiple devices,  multiple elements. Request parameters

9.4.10.3 Sample Request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/reads/fromToGroupByTs

JSON input object:

{

  "devices": ["0323040032", "0422510050"],

  "sensors": ["Temp Ext", "MB Humidity"],

  "startTs":1720407439000,

  "endTs": 1731407439000,

  "number": 40000

}

(From startTs = 1720407439000 to endTs = 1720407439000 for elements in the sensors array tagged as 'Temp ext' and 'MB Humidity' in the devices array, specifically for devices with SN 0323040032 and SN 0422510050)

9.4.10.4 Response codes

Table 46 - Get reads fromTo grouped by timestamps: Multiple devices, multiple elements. Response codes

9.4.10.5 Response content

[

    {

        "ts": 1720407458000,

        "0323040032": {

            "MB Humidity": {

                "value": "72.10",

                "validation": "T",

                "reason": "0"

            }

        }

    },

    {

        "ts": 1720407524000,

        "0323040032": {

            "Humidity ext": {

                "value": "70.02",

                "validation": "T",

                "reason": "0"

            },

            "MB Humidity": {

                "value": "73.20",

                "validation": "T",

                "reason": "0"

            }

        }

    },

    {

        "ts": 1720407578000,

        "0323040032": {

            "MB Humidity": {

                "value": "73.90",

                "validation": "T",

                "reason": "0"

            }

        }

    },

    {

        "ts": 1720407711000,

        "0422510050": {

            "Humidity ext": {

                "value": "68.32",

                "validation": "T",

                "reason": "0"

            }

        }

    }

]

9.4.11 Get Validation Logs from: Multiple devices

It returns the validation logs within the period [ts, +∞). The response “action_ts” is the moment when the validation was made and the “range” the period of data of the element that has changed.

The response is limited to 1000 validation logs so it will return at most the first 1000 within the requested period. In order to collect all the validation logs within a complete period which contains more than 1000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method. Once the timestamps of the response exceed the upper timestamp of the desired period, calls should stop.

9.4.11.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/validationLog/from

o    HTTP method: POST

9.4.11.2 Request parameters

Table 47 - Get Validation Logs from: multiple devices. Request parameters

9.4.11.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/validationLog/from

JSON input object:

{

    "devices": ["9999999999"],

    "ts": 1528121429000

}

(From ts=1528121429000 for the device with SN 9999999999)

9.4.11.4 Response codes

Table 48 - Get Validation Logs from: multiple devices. Response codes

9.4.11.5 Response content

[

    {

         "serial_number": "9999999999",

        "sensor_tag": "Temp ext",

        "action": "TI",

        "action_ts": 1528143051000,

        "range": {

                "start_ts": 1527143051000,

                “end_ts”: 1527153051000

         },

        "reason": "5"

    },

    {

     "serial_number": "9999999999",

     "sensor_tag": "Battery",

     "action": "I",

     "action_ts": 15281442451000,

     ""range": {

                "start_ts": 1527123051000,

                “end_ts”: 1527123051000

         },

        "reason": "6"

    },

    ...

    {

        "serial_number": "9999999999",

         "sensor_tag": "Temp ext",

        "action": "V",

        "value": "4.990",

        "action_ts": 1528153051000,

        "range": {

                "start_ts": 1527143051000,

                “end_ts”: 1527153051000

         },

        "reason": "0"

    }

]

9.4.12 Get Validation Logs fromTo: Multiple devices

It returns the validation logs within the period [{starTs},{endTs}]. The response “action_ts” is the moment when the validation was made and the “range” the period of data of the element that has changed.

The response is limited to 1000 validation logs so it will return at most the first 1000 within the requested period. In order to collect all the reads within a complete period which contains more than 1000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method while keeping the ending timestamp. This way, user can obtain all the reads contained in the desired period.

9.4.12.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/validationLog/fromTo

o    HTTP method: POST

9.4.12.2 Request parameters

Table 49 - Get Validation Logs fromTo: multiple devices. Request parameters

9.4.12.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/validationLog/fromTo

(From ts=1528121429000 to ts=1528207830000 for the device with SN 9999999999)

JSON input object:

{

    "devices": ["9999999999"],

    "startTs ": 1528121429000,

   "endTs": 1528207830000

}

(From ts=1528121429000 for To ts=1528207830000 the device with SN 9999999999)

9.4.12.4 Response codes

Table 50 - Get Validation Logs fromTo: multiple devices. Response codes

9.4.12.5 Response content

[

    {

         "serial_number": "9999999999",

        "sensor_tag": "Temp ext",

        "action": "TI",

        "action_ts": 1528143051000,

        "range": {

                "start_ts": 1527143051000,

                 “end_ts”: 1527153051000

         },

        "reason": "5"

    },

    {

     "serial_number": "9999999999",

     "sensor_tag": "Battery",

     "action": "I",

     "action_ts": 15281442451000,

     "range": {

                "start_ts": 1527123051000,

                “end_ts”: 1527123051000

         },

        "reason": "6"

    },

    ...

    {

        "serial_number": "9999999999",

         "sensor_tag": "Temp ext",

        "action": "V",

        "value": "4.990",

        "action_ts": 1528153051000,

        "range": {

                "start_ts": 1527143051000,

                 “end_ts”: 1527153051000

         },

        "reason": "0"

    }

]

9.4.13 Get Validation Logs until: Multiple devices

It returns the validation logs of an element within the period (-∞, {ts}]. The response “action_ts” is the moment when the validation was made and the “range” the period of data of the element that has changed.

The response is limited to 1000 validation logs so it will return at most the last 1000 within the requested period. This method is very useful to go through time in descending order (from recent to old validation log). By setting {ts} to the current timestamp, a user could know the last {number} validation log of a device.

9.4.13.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/validationLog/until

o    HTTP method: POST

9.4.13.2 Request parameters

Table 51 - Get Validation Logs until: multiple devices. Request parameters

9.4.13.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/validationLog/until

JSON input object:

{

    "devices": ["9999999999"],

   "ts": 1528207830000

}

(Until ts=1528207830000 for the device with SN 9999999999)

9.4.13.4 Response codes

Table 52 - Get Validation Logs until: multiple devices. Response codes

9.4.13.5 Response content

[

    {

        "serial_number": "9999999999",

         "sensor_tag": "Temp ext",

        "action": "V",

        "value": "4.990",

        "action_ts": 1528153051000,

        "range": {

                "start_ts": 1527143051000,

                 “end_ts”: 1527153051000

         },

        "reason": "0"

    },…

    {

     "serial_number": "9999999999",

     "sensor_tag": "Battery",

     "action": "I",

     "action_ts": 15281442451000,

     "range": {

                "start_ts": 1527123051000,

                 “end_ts”: 1527123051000

         },

        "reason": "6"

    },{

         "serial_number": "9999999999",

        "sensor_tag": "Temp ext",

        "action": "TI",

        "action_ts": 1528143051000,

        "range": {

                "start_ts": 1527143051000,

                 “end_ts”: 1527153051000

         },

        "reason": "5"

    }]



9.5 Warnings Methods

The methods described below are about the warnings caused by a threshold exceeded by an element of a device.

9.5.1 Check all warnings

It checks all warnings of a single device. It returns true if the warnings have been checked and otherwise returns false.

9.5.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/checkAllAlarms

o    HTTP method: GET

o    Required permissions: check warnings included at “The admin” and “The expert” profile.

9.5.1.2 Request parameters

Table 53 - Check all warning. Request parameters

9.5.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/checkAllAlarms (Check all warnings on a device with SN 0000000001)

9.5.1.4 Response codes

Table 54 - Check all warnings on a device. Response codes

9.5.1.5 Response content

o    Number of warnings that are still unchecked

o    -1 if the device is invalid.

9.5.2 Check a warning: single element

It confirms a warning of an element.

9.5.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id>/checkAlarm?start_ts=<ts>*

o    HTTP method: GET

o    Required permissions: check warnings included at “The admin” and “The expert” profile.

*Note: only the start ts is needed since there can't be two warnings with the same start ts.

9.5.2.2 Request parameters

Table 55 - Check a warning: single element. Request parameters

9.5.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/elements/AIRQ%20SHT%20T/ checkAlarm?ts=1431592400000 (check a warning with start timestamp 1431592400000 for element tagged as 'AIRQ SHT T' in device with SN 0000000001)

9.5.2.4 Response codes

Table 56 - Check a warning: single element. Response codes

9.5.2.5 Response content

o    true (If the warning has been checked)

o    false (If the warning has not been checked, because some parameter is incorrect) or there were no warnings with the requested start timestamp

9.5.3 Get all warnings: all elements

It returns all the warnings (active, checked and unchecked ones) of the requested device.

9.5.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/alarms/all? startTs=<startTs>&endTs=<endTs>&number=<number>

o    HTTP method: GET

9.5.3.2 Request parameters

Table 57 - Get all warning: all elements. Request parameters

9.5.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/elements/alarms/all?startTs= 1533887528000&endTs=1535972619000&number=100

9.5.3.4 Response codes

Table 58 - Get all warning: all elements. Response codes

9.5.3.5 Response content

{

    "active": [

        {

            "element_id": "Heartbeat",

"description": "persistence: 1, last connection: 2018-09-05 15:06:05 UTC",

            "start_ts": "1536160265000",

            "end_ts": ""

        }

    ],

    "unchecked": [

        {

            "element_id": "Heartbeat",

"description": "persistence: 1, last connection: 2018-08-10 07:47:08 UTC",

            "start_ts": "1533887528000",

            "end_ts": "1535972619000"

        },

        {

            "element_id": "Heartbeat",

"description": "persistence: 1, last connection: 2018-09-03 11:52:27 UTC",

            "start_ts": "1535975607000",

            "end_ts": "1535975844000"

        }

    ],

    "checked": [

        {

            "element_id": "Heartbeat",

"description": "persistence: 1, last connection: 2018-08-09 14:31:12 UTC",

            "start_ts": "1533825372000",

            "end_ts": "1533828343000"

        },

        ...

        {

            "element_id": "Heartbeat",

"description": "persistence: 1, last connection: 2018-08-09 15:46:14 UTC",

            "start_ts": "1533829874000",

            "end_ts": "1533830162000"

        }

    ]

}

9.5.4 Get pending warnings: all elements

It returns the warnings that a user should be aware of active and unchecked warnings.

9.5.4.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/alarms/pending? startTs=<startTs>&endTs=<endTs>&number=<number>

o    HTTP method: GET

9.5.4.2 Request parameters

Table 59 - Get pending warnings: all elements. Request parameters

9.5.4.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/elements/alarms/pending?startTs= 1533887528000&endTs=1535972619000&number=100

9.5.4.4 Response codes

Table 60 - Get pending warnings: all elements. Response codes

9.5.4.5 Response content

{

    "active":[

        {

            "element": "Battery",

            "description":"<= 3.40 V, persistence: 1",

            "start_ts":"1457001533000"

        },

        {

            "element": "CO GCc"

            "description":">= 2000 ppb, persistence: 2",

            "start_ts":"1457002312000"

        },

        {

            "element": "PM10"

            "description":"<= 50 ug/m3, persistence: 1",

            "start_ts":"1457095128000"

        }

    ],

    "unchecked":[

        {

            "element": "Battery",

            "description":"<= 3.50 V, persistence: 2",

            "start_ts":"1457001033000"

            "end_ts":"1457001933000"

        },

        {

            "element": "CO GCc"

            "description":">= 1800 ppb, persistence: 4",

            "start_ts":"1457000312000",

            "end_ts": "1457000912000"

        }

    ]

}

9.5.5 Get active warnings: all elements

It returns the active warnings of all the elements of the requested device. A warning is activated when the associated element doesn't work properly (samples beyond thresholds, connection failures…) Warnings are open automatically by multiple possible reasons (threshold, heartbeat…). Warning can't be closed manually: only the reads within the configured range [min threshold, max threshold] or device connections (once a device is connected, threshold alerts are closed) can deactivate them.

9.5.5.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/alarms/active

o    HTTP method: GET

9.5.5.2 Request parameters

Table 61 - Get active warnings: all elements. Request parameters

9.5.5.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/elements/alarms/active

9.5.5.4 Response codes

Table 62 - Get active warnings: all elements. Response codes

9.5.5.5 Response content

[

    {

        "element_id": "Flow T3",

        "description": "Possible partial break",

        "start_ts": "1528208210000",

        "end_ts": ""

    },

    {

        "element_id": "Flow T2",

        "description": "Partial obstruction",

        "start_ts": "1526476032000",

        "end_ts": ""

    }

]

9.5.6 Get warning from: single element

It returns all kinds of warnings -in KunakCloud Web there are three types: active, checked and unchecked- whose start date is within the period [ts, +∞).

The response is limited to 1000 warnings so it will return at most the first 1000 within the requested period. To collect all the warnings within a complete period which contains more than 1000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method. Once the timestamps of the response exceed the upper timestamp of the desired period, calls should stop.

9.5.6.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id>/alarms/from?ts=<ts>&number=<number>

o    HTTP method: GET

9.5.6.2 Request parameters

Table 63 - Get warnings from: single element. Request parameters

9.5.6.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/elements/Battery/alarms/from?ts=1457001830000 (the threshold from 1457001830000 for element tagged as 'Battery' in device with SN 0000000001)

9.5.6.4 Response codes

Table 64 - Get warnings from: single element. Response codes

9.5.6.5 Response content

[

    {

        "description":"<= 3.40 V, persistence: 1",

        "start_ts":"1457001833000",

        "end_ts":"1457002305000"}

    },

    {

        "description":"<= 3.40 V, persistence: 1",

        "start_ts":"1457002312000",

        "end_ts":"1457015114000"

    },

    ...

    {

        "description":"<= 3.40 V, persistence: 1",

        "start_ts":"1457095128000",

        "end_ts":""

    }

]

9.5.7 Get warning fromTo: single element

It returns all kinds of warnings -in KunakCloud Web there are three types: active, checked and unchecked- whose start date is within the period [startTs, endTs].

The response is limited to 1000 warnings so it will return at most the first 1000 within the requested period.  To collect all the warnings within a complete period which contains more than 1000, consecutive calls to this method could be done using the last timestamp of the response as the starting timestamp of the next call to this method while keeping the ending timestamp. This way, the user can obtain all the warnings contained in the desired period.

9.5.7.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id>/alarms/fromTo?startTs=<startTs>&endTs=<endTs>&number=<number>

o    HTTP method: GET

9.5.7.2 Request parameters

Table 65 - Get warnings fromTo: single element. Request parameters

9.5.7.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/elements/Battery/alarms/fromTo?startTs=1431592400000&endTs=1457095129000 (the threshold from 1431592400000 for element tagged as 'Battery' in device with SN 0000000001)

9.5.7.4 Response codes

Table 66 - Get warnings fromTo: single element. Response codes

9.5.7.5 Response content

[

    {

        "description":"<= 3.40 V, persistence: 1",

        "start_ts":"1457001833000",

        "end_ts":"1457002305000"}

    },

    {

        "description":"<= 3.40 V, persistence: 1",

        "start_ts":"1457002312000",

        "end_ts":"1457015114000"

    },

    ...

    {

        "description":"<= 3.40 V, persistence: 1",

        "start_ts":"1457095128000",

        "end_ts":""

    }

]

9.5.8 Get warning until: single element

It returns all kinds of warnings -in KunakCloud Web there are three types: active, checked and unchecked- whose start date is within the period (-∞, {ts}].

The response is limited to 1000 warnings so it will return at most the last 1000 within the requested period. This method is very useful to go through time in descending order (from recent to old warnings). By setting {ts} to the current timestamp, a user could know the last {number} warnings of a device.

9.5.8.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id>/alarms/until?ts=<ts>&number=<number>

o    HTTP method: GET

9.5.8.2 Request parameters

Table 67 - Get warnings until: single element. Request parameters

9.5.8.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/elements/AIRQ%20SHT%20T/alarms/until?ts=1431592400000 (the threshold until 1431592400000 for element tagged as 'AIRQ SHT T' in device with SN 0000000001)

9.5.8.4 Response codes

Table 68 - Get warnings until: single element. Response codes

9.5.8.5 Response content

[

    {

        "description":"<= 3.40 V, persistence: 1",

        "start_ts":"1457001833000",

        "end_ts":"1457002305000"}

    },

    {

        "description":"<= 3.40 V, persistence: 1",

        "start_ts":"1457002312000",

        "end_ts":"1457015114000"

    },

    ...

    {

        "description":"<= 3.40 V, persistence: 1",

        "start_ts":"1457095128000",

        "end_ts":""

    }

]

9.6 Operation Methods

Battery, charge and heartbeat operation alarms that can be seen by every type of account and device. The rest of operation alarms are only accessible for devices with the “operation” package.The different codes of the operation alarms that can be found, are described below.

Alarm Code	Applies to	Type (hourly, daily, …)	Description	Help
0	Device	Instantaneous	Heartbeat: Connection has been lost Persistence: {value}, last connection: {last connection}	Possible coverage problem, with the mobile operator or incorrect disconnection of the battery.
1	Device	Instantaneous	Modbus reading error	Check if Modbus RS-485 cable is  properly connected and if the device is properly configured and powered.
2	Device	Instantaneous	Working temperature out of range	Check that the device and its sensors have not suffered any damage
3	Sensor	Hourly	Broken or wrongly connected sensor.	Replace the sensor
4	Device	Hourly	Error in the power supply of the analog measurement part of the gas sensors	Check that the internal wiring is correctly connected and that the voltage is reaching the PCB where the gas sensors are connected
5	Sensor	Daily	Saturated or broken sensor	The sensor has been exposed to concentrations greater than its measurement range. Wait until the concentration levels return within the sensor measurement ranges or place it in a clean area and wait for its stabilization. If after 72 hours is the issue has not beensolved, the sensor might have been damaged and needs to be replaced.
6	Sensor	Hourly	Broken sensor or extremely dry or wet.	Locate the sensor in a clean area at 50% of RH and wait for its stabilization. If it does not recover to its normal values, replace the sensor
7	Sensor	Daily	Poisoned or broken sensor	PLace the sensor in a clean area for 72 h to observe if it recovers. If the error remains, replace the sensor.
8	Sensor	Daily	Particle sensor partially obstructed.	Clean the particle sensor and filters according to the manual
9	Sensor	Daily	Particle sensor obstructed.	Clean the sensor and filters immediately according to the manual to avoid possible damage to the sensor itself.
10	Sensor	Daily	Air flow failure in the particle sensor	Clean the sensor and restart it. If this error appears constantly, the sensor might be obstructed or broken. Contact technical support.
11	Sensor	Hourly	Particle sensor laser probably broken.	Contact technical support to replace the sensor.
12	Sensor	Hourly	4-20 mA sensor disconnected, not powered, broken or out of range.	Check the connection of the sensor and its correct operation.
13	Sensor	Daily	Wind direction sensor blocked or broken.	Check the free movement of the wind vane.
14	Sensor	Daily	Wind direction sensor broken.	Check the correct connection of the wind vane.
15	Sensor	Daily	At least 50% of data are missing for the last 24 h
16	Sensor	Daily	The sensor has a serious problem, and its data are not being received.	Check that the sensor is operating properly. If does, restart the device. If the error persists, contact technical support.
17	Sensor	Daily	High internal temperature inside the device	Check the working conditions of the device to avoid any damage of their internal components (battery, some sensors...).
18	Device	Instantaneous	Heartbeat: Lost of connexion probably due to battery discharge. Persistence: {value}, last connection: {last connection}	Either recharge, replace the battery or check the correct operation of the power supply.
19	Sensor	Weekly	Wind sensor disconnected or broken	Check the correct connection of the wind sensor
20	Sensor	Daily	Power supply or solar panel disconnected or broken	Check the power supply or the solar panel connection, and its correct operation.
21	Sensor	Hourly	Primary battery low or power voltage reduced	Check the power voltage or replace the primary battery.
22	Sensor	Hourly	Device close to run out of battery	Check the correct connection of the power supply.
23	Sensor	Weekly	The gas sensors have been working too long out of their recommended humidity range. Extended exposure to humidity below 15% or above 85% could damage these sensors	Place the device outside these humidity conditions to recover the gas sensors.
24	Sensor	Daily	The gas sensor baseline may be slightly out of calibration.	Recalibrate the gas sensor baseline.
25	Sensor	Daily	Gas sensor baseline is out of calibration reducing sensor accuracy	Urgently recalibrate the sensor baseline
26	Sensor	Daily	The gas sensors have been working below the recommended humidity range. Extended exposure to a relative humidity below 5% may damage these sensors	Place the device outside these humidity conditions to recover the gas sensors.
27	Device	Instantaneous	Incorrect sensor initialization	Reset the device. If persist, contact support
28	Device	Instantaneous	The device could NOT be geolocated correctly	When the device is indoors, it may fail. Make sure the device is outdoors and try asking it to geolocate the device automatically.
31	Device	Daily	The device is not working properly. Error "V_V5_Aux"	Please, contact with support to solve the problem
32	Device	Daily	The device is not working correctly. (Error: PCB Gases)	Please, contact with support to solve the problem
33	Sensor	Daily	Weak mobile coverage	Consider placing the device in another location with more coverage to avoid data loss
34	Device	Daily	Device is not sending data to the platform	Possible error in the device or in the communications. Try restarting the device.
35	Sensor	Daily	Bad connection cartridge	Switch off the device and unplug the cartridge. Check that the pins of the connector are not bent and plug again the cartridge.
36	Device	Instantaneous	Internal malfunction: {description}	Please, contact with support to solve the problem
38	Sensor	Hourly	Some cartridges ({0}) are no compatible with the firmware version.	Please update the device so that it can recognise the cartridge. Go to update section.
45	Device	Daily	Cartridge improperly connected or disconnected.	Switch off the device and unplug the cartridge. Check that the pins of the connector are not bent and plug again the cartridge.

Table 69 – List of all the operation alarms that can appear

9.6.1 Get operation alarms from: single device

It returns the operation alarms of an device within the period ({ts},+∞].

The response is limited to 1000 operation alarms so it will return at most the first 1000 within the requested period. In order to collect all the operation alarms within a complete period which contains more than 1000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method. Once the timestamps of the response exceed the upper timestamp of the desired period, calls should stop.

9.6.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/operationAlarms/from ts=<ts>&number=<number>

o    HTTP method: GET

9.6.1.2 Request parameters

Table 70 - Get operation alarms from. Request parameters

9.6.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/operationAlarms/from?ts=1528207830000

(From ts=1528207830000 for the device with SN 9999999999)

9.6.1.4 Response codes

Table 71 - Get operation alarms from. Response codes

9.6.1.5 Response content

[    {

        "sensor_tag": " Charge ",

        "code": "20",

        "start_ts": 1528123051000,

        "end_ts": 1528723051000

    },

     {

        "sensor_tag": "Charge",

        " code ": "20",

        "start_ts": 1529123051000,

         “end_ts”: 1529223051000

    },

    ...

    {

        "sensor_tag": "Charge",

        "code": "20",

        "start_ts": 1529223051000,

         “end_ts”: “”

    }

]

9.6.2 Get operation alarms fromTo: single device

It returns the operation alarms of an device within the period ({startTs},{endTs}].

The response is limited to 1000 operation alarms so it will return at most the first 1000 within the requested period.  In order to collect all the reads within a complete period which contains more than 1000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method while keeping the ending timestamp. This way, user can obtain all the operation alarms contained in the desired period.

9.6.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/operationAlarms/fromTo?startTs=<startTs>&endTs=<endTs>&number=<number>

o    HTTP method: GET

9.6.2.2 Request parameters

Table 72 - Get operation alarms fromTo. Request parameters

9.6.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/operationAlarms/fromTo?startTs=1528207830000&endTs=1529223051000

(From ts=1528207830000 to ts= 1529223051000 for the device with SN 9999999999)

9.6.2.4 Response codes

Table 73 - Get operation alarms fromTo. Response codes

9.6.2.5 Response content

[    {

        "sensor_tag": " Charge ",

        "code": "20",

        "start_ts": 1528123051000,

        "end_ts": 1528723051000

    },

     {

        "sensor_tag": "Charge",

        "code": "20",

        "start_ts": 1529123051000,

         “end_ts”: 1529223051000

    },

    ...

     {

        "sensor_tag": "Charge",

        "code": "20",

        "start_ts": 1529223051000,

         “end_ts”: “”

    },

]

9.6.3 Get operation alarms until: single device

It returns the operation alarms of an device within the period (-∞, {ts}].

The response is limited to 1000 operation alarms so it will return at most the last 1000 within the requested period. This method is very useful to go through time in descending order (from recent to old operation alarms). By setting {ts} to the current timestamp, a user could know the last {number} operation alarm of a device.

9.6.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id> /operationAlarms/until ts=<ts>&number=<number>

o    HTTP method: GET

9.6.3.2 Request parameters

Table 74 - Get operation alarms until. Request parameters

9.6.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/9999999999/operationAlarms/until?ts=1529507830000

(Until ts=1529507830000 for the device with SN 9999999999)

9.6.3.4 Response codes

Table 75 - Get operation alarms until. Response codes

9.6.3.5 Response content

[

    {

        "sensor_tag": "Charge",

        "code": "20",

        "start_ts": 1529223051000,

         “end_ts”: “”

    },

     {

        "sensor_tag": "Charge",

        "code": "20",

        "start_ts": 1529123051000,

         “end_ts”: 1529223051000

    },

    ...

    {

        "sensor_tag": " Charge ",

        "code": "20",

        "start_ts": 1528123051000,

        "end_ts": 1528723051000

    }

]

9.7 Actuator Methods

There are currently multiple types of actuation depending on the configured start and end timestamps:

o    Asap: as soon as possible. The device updates the state of the actuator immediately after receiving the actuation command. Start timestamp=0 for this actuation.

o    Permanent: the device keeps the requested state of the actuator until a new actuation message is received. End timestamp=-1 (0xFFFFFFFF) for this calibration.

o    Scheduled: the device keeps the requested state of the actuator from start timestamp to end timestamp. Once the end timestamp has been exceeded, the actuator returns to its default state. Start and end timestamps are values different from 0 and -1 and start timestamp must be greater than end timestamp.

9.7.1 List all actuators: single device

It returns the list of all actuators in one device.

9.7.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/actuators

o    HTTP method: GET

9.7.1.2 Request Parameters

Table 76 - List all actuators: single device. Request parameters

9.7.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/actuators (actuators of device with SN 0000000001)

9.7.1.4 Response codes

Table 77 - List all actuators: single device. Response codes

9.7.1.5 Response content

[

    "Valve1",

    "Valve2"

]

9.7.2 Read information: single actuator

It returns the information of the requested actuator.

9.7.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/actuators/<actuator_id>/info

o    HTTP method: GET

9.7.2.2 Request Parameters

Table 78 - Read information: single actuator. Request parameters

9.7.2.3 Sample request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/actuators/Actuator%201/info (actuator with id=’Actuator 1’ of device with SN 0000000001)

9.7.2.4 Response codes

Table 79 - Read information: single actuator. Response codes

9.7.2.5 Response content

Scheduled actuation:

{

    "tag": "Actuator 1",

    "status": "on",

    "next_config":

    {

        "start_ts";" 1456994428000",

        "end_ts":" 1457167228000",

        "status":"off"

    }

}

Asap and permanent actuation:

{

    "tag": " Actuator 2",

    "status": "off",

    "next_config": {

        "start_timestamp": "asap",

        "end_timestamp": "undefined",

        "status": "off"

    }

}

9.7.3 Set scheduled actuation: single actuator

It configures the next scheduled actuation of an actuator

9.7.3.1 Request parameter:

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/actuators/<actuator_id>/scheduled

o    HTTP method: POST

o    Required permissions: device configuration included at “The admin” and “The expert” profile.



9.7.3.2 Request parameters

Table 80 - Set scheduled actuation: single actuator. Request parameters

9.7.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/actuators/Actuator%201/scheduled (actuator with id=’Actuator 1’ of device with SN 0000000001)

JSON input:

{

    "start_timestamp": "0",

    "end_timestamp": "1457167228000",

    "status": "on"

}

9.7.3.4  Response codes

Table 81 - Set scheduled actuation: single actuator. Response codes

9.7.3.5 Response content

{

    "tag": "Valvula",

    "status": "off",

    "next_config": {

        "start_timestamp": "asap",

        "end_timestamp": "1457167228000",

        "status": "on"

    }

}

9.8  Operational Parameters Methods

9.8.1 List all operational parameters: single device

It returns the list of operational parameters in one device

9.8.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/operationalParameters

o    HTTP method: GET

9.8.1.2 Request Parameters

Table 82 - List all operational parameters: single device. Request parameters

9.8.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/operationalParameters    (operationalParameters of device with SN 0000000001)

9.8.1.4 Response codes

Table 83 - List all operational parameters: single device. Response codes

9.8.1.5 Response content

[

    "OPC_LOW_PW",

    "MAXHOUR",

    "MINHOUR",

    "ESTADO"

]

9.8.2 Read information: single operational parameter

It returns the information of the requested operational parameter.

9.8.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/operationalParameters/<opParam_id>/info

o    HTTP method: GET

9.8.2.2 Request parameters

Table 84 - Read information: single operational parameter. Request parameters

9.8.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/operationalParameters/OpParam%201/info (operational parameter with id=’OpParam 1’ of device with SN 0000000001)

9.8.2.4 Response codes

Table 85 - Read information: single operational parameter. Response codes

9.8.2.5 Response content

Normal device (with queued value for the requested operational parameter):

{

    "tag": "Op maram 1",

    "value": "0",

    "writeable": true,

    "date": 1527082377000,

    "parameter_type": "Integer",

    "parameters_type_field": {

        "sign": "0",

        "resolution": "0",

        "unit": ""

    },

    "protocol": "None",

    "next_value": "55"

}



Modbus device:

{

    "tag": "Op param 1",

    "value": "220",

    "writeable": true,

    "date": 1527135120000,

    "parameter_type": "Integer",

    "parameters_type_field": {

        "sign": "0",

        "resolution": "1",

        "unit": "C/F"

    },

    "protocol": "Modbus",

    "protocol_fields": {

        "slave addr": "1",

        "start reg addr": "40276",

        "reg count": "1"

    }

}



The 'next_value' attribute is shown only when there are queued updates for the requested operational parameter.

The operational parameters can be of different types: text, integer, decimal and bitmask. The key 'parameters_type_field' contains attributes based on the parameter_type:

o    Text:

·         max length: uint8

·         codification: 0 (ASCII), 1(UTF-8) and 3 (ISO-8859-1)

o    Integer:

·         sign: 0 (unsigned) or 1(signed)

·         resolution: 0 (int8), 1 (int16), 2 (int32) or 3 (int64)

·         unit:: 1-10 characters

o    Decimal:

·         resolution: 0 (Float) or 1 (Double)

·         unit:: 1-10 characters

o    Bitmask:

·         length:  length in bytes

The operational parameters can belong to a Kunak device or an external one connected through communication protocols. There are currently two types: none and Modbus. The key 'protocol_fields' contains attributes based on the protocol:

o    None: 'protocol_fields' is empty

o    Modbus:

·         slave address: uint8

·         start reg address: uint16

·         reg count: uint8

9.8.3 Read current value: all operational parameters

It returns the value currently configured in all the operational parameters. The date shown is the last date when the value was updated.

9.8.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/operationalParameters/values

o    HTTP method: GET

9.8.3.2 Request parameter

Table 86 - Read current value: all operational parameters. Request parameters

9.8.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/operationalParameters/values

9.8.3.4 Response codes

Table 87 - Read current value: all operational parameters. Response codes

9.8.3.5 Response content

[

    {

        "tag": "ESTADO",

        "value": "0000000000001001",

        "date": 1527136638000

    },

    {

        "tag": "HEAT",

        "value": "1",

        "date": 1527135118000

    },

    {

        "tag": "Dep Prog",

        "value": "150",

        "date": 1527135119000

    }

]

9.8.4 Read value fromTo: single operational parameter

It returns the values of a single operational parameters within the period [{starTs},{endTs}].

The response is limited to 1000 values so it will return at most the first 1000 within the requested period.  To collect all the values within a complete period which contains more than 1000 data points, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method while keeping the ending timestamp. This way, the user can obtain all the values contained in the desired period.

9.8.4.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/operationalParameters/<opParam_id>/values/fromTo?startTs=<startTs>&endTs=<endTs>&number=<number>

o    HTTP method: GET

9.8.4.2 Request parameters

Table 88 - Read values fromTo: single operational parameter. Request parameters

9.8.4.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/operationalParameters/Op_Param_1/ values/fromTo?startTs=1523009885000&endTs=1528280285000 (From ts=1523009885000 to ts=1528280285000 for operational parameter tagged as ‘Op_Param_1' in the device with SN 0000000001)



9.8.4.4 Response code

Table 89 - Read values fromTo: single operational parameter Response code

9.8.4.5 Response content

[

    {

        "value": "0000000000000010",

        "start_ts": 1523246577000,

        "end_ts": 1523248096000

    },

    {

        "value": "0000000000001001",

        "start_ts": 1523248097000,

        "end_ts": 1523333059000

    },

    ...

    {

        "value": "0000000000000010",

        "start_ts": 1527135118000,

        "end_ts": 1527136637000

    },

    {

        "value": "0000000000001001",

        "start_ts": 1527136638000,

        "end_ts": null

    }

]

9.8.5 Queue value: single operational parameter

It queues the next value of an operational parameter. Once the device connects again, this value will be applied to the parameter. It only works with Kunak devices since they support bidirectional communication through the Kunak Wireless Protocol.

9.8.5.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/operationalParameters/<opParam_id >/queue

o    HTTP method: POST

o    Required permissions: operational parameters configuration

9.8.5.2 Request parameters

Table 90 - Queue value: single operational parameter. Request parameter

9.8.5.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/operationalParameters/OpParam%201/queue

The operational parameter "OpParam 1" is of the type Bitmask:

JSON input:

{

    "new_value": "1010101010101010"

}

9.8.5.4  Response codes

Table 91 - Queue value: single operational parameter. Response codes

9.8.5.5 Response content

Device connected with Modbus:

{

    "tag": "Device5",

    "value": "0000000000001001",

    "writeable": true,

    "date": 1527136638000,

    "parameter_type": "Binary",

    "parameters_type_field": {

        "length": "2"

    },

    "protocol": "Modbus",

    "protocol_fields": {

        "slave addr": "1",

        "start reg addr": "40403",

        "reg count": "1"

    },

    "next_value": "1010101010101010"

}



Standard device:

{

    "tag": " Device5",

    "value": "0000000000001001",

    "writeable": true,

    "date": 1527136638000,

    "parameter_type": "Binary",

    "parameters_type_field": {

        "length": "2"

    },

    "protocol": "None",

    "next_value": "1010101010101010"

}

9.8.6 Queue value: multiple operational parameters

9.8.6.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/operationalParameters/queue

o    HTTP method: POST

o    Required permissions: operational parameters configuration

9.8.6.2 Request parameters

Table 92 - Queue value: multiple operational parameters. Request parameters

9.8.6.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/0000000001/operationalParameters/queue

JSON input:

[

    {"tag": "Param A", "value": "123456"},

    {"tag": "Param B", "value": "Test value"},

    {"tag": "Param C", "value": "98764"}

]

9.8.6.4 Response codes

Table 93 - Queue value: multiple operational parameters. Response codes

9.8.6.5 Response content

JSON object containing the number of queues that have been updated:

{

    "updated": "3"

}

9.9 Remote Action Methods

9.9.1 Execute remote action: multiple devices

The endpoint allows remote actions to be performed on multiple devices simultaneously. The actions will be scheduled and applied upon the next connection of each device. If there are two actions in the array for the same device, only the first one will be applied. The available actions are:

o    "require_gps_position": Forces the device to obtain a new GPS position.

o    "fixed_position": Disables or enables the fixed position and sets the device's latitude and longitude.

o    "reboot": Reboots the device.

9.9.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/actions

o    HTTP Method: POST

o    Required permissions: device configuration included at “The admin” and “The expert” profile.

9.9.1.2 Request parameters

Table 94 - Execute remote action: multiple devices. Request parameters

9.9.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/actions

JSON input;

[

  {

    "device_id": "9112160001",

    "action": "require_gps_position",

    "params": {}

  },

  {

    "device_id": "9112160002",

    "action": "fixed_position",

    "params": {

      "fixed_position": true,

      "latitude": "42.754430",

      "longitude": "-1.637302"

    }

  },

  {

    "device_id": "9112160003",

    "action": "reboot",

    "params": {}

  }

]



9.9.1.4 Response codes



9.9.1.5 Response content

JSON array containing JSON objects, each of which specifies the result of the corresponding action. Objects consist of the serial number of the device to which the action was applied, the action identifier, a status code (e.g., error, success, fail, or info) indicating the result of applying the action, and an informational message.



[

    {

        "device_id": "9112160001",

        "action": "require_gps_position",

        "status": "success",

        "message": "GPS Position required queued successfully."

    },

    {

        "device_id": "9112160002",

        "action": "fixed_position",

        "status": "success",

        "message": "Fixed Position processed successfully."

    },

    {

        "device_id": "9112160001",

        "action": " fixed_position ",

        "status": "info",

        "message": "Additional actions were not processed."

    },

    {

        "device_id": "9112160003",

        "action": "reboot",

        "status": "success",

        "message": "Reboot action processed successfully."

    }

]



10. API methods for Kunak locations

A location is a virtual site created by the user to analyse location data without taking into account the devices that have passed through the place. Allows you to manage your data by locations by assigning devices to specific spots.

      The only way to create, edit or delete locations is by going to Kunak Cloud.

There are multiple methods/functions, split into several types depending on the application context: locations, elements or operational parameters. It is important to note for the upcoming subversion updates that every method starts with the url format: openAPIv{main version}/v{subversion}/rest/. For the API described in this document (REST API v0.1), {main version} = 0 and {subversion} = 1.

10.1 General Methods

The states of a device or location can be:

·         [-1]  Not devices (White): Only for locations. No devices assigned to the location.

·         [0]  OK (Green): Device connected without alarms or warnings. The device has connected during the estimated time interval (last connection + sending period + wireless communications offset).

·         [1]  Off (Grey): Device switched off correctly by the user or heartbeat not active.

·         [2]  Warning (Yellow): The device is connected but has warnings that must be attended due to a configured threshold being exceeded.

·         [3]  Offline (Red): The connection with the device was lost. Only works when the device’s heartbeat is active and when the device does not connect within the estimated communication window (last connection date + [sending period x persistence] + communications offset). This could be caused by coverage (unreachable or too slow network) or device problems.

·         [4]  Alarms (Pink): Device connected but has operation alarms to be attended.

Since locations group the information of several devices that may be assigned to them, locations state is represented by the most critical state of the devices assigned to it.

10.1.1 List all locations

It returns a list with all the locations that the current requested user can access to and their current status. There are 6 status types sort by ascending gravity in case of problems.

With this method it's possible to get all the locations of a direct client (subuser) in KunakCloud platform.

10.1.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/list/<user_id>

o    HTTP method: GET

10.1.1.2 Request parameters

Table 95 - List all locations. Request parameters

10.1.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/list/demo (for user 'demo')

10.1.1.4 Response codes

Table 96 - List all locations. Response codes

10.1.1.5 Response content

[

    {

        "location_id": 99999999,

        "tag": "Location 1",

        "status": 1,

        "location": {

            "latitude": "42.753000",

            "longitude": "-1.633157"

        },

      "device_list": {

                {

                    "serial_number": "9230160001",

                     "last_connection_ts": 1614275317000,

                      "start_date": 1614275317000,

                     "end_date": 1618275317000,

                },

                {

                    "serial_number": "9230160002",

                     "last_connection_ts": 1614275417000,

                      "start_date": 1618275317000,

                     "end_date": “currently”,

                }



        }

    },

   {

       "location_id": 99999998,

        "tag": "Location 2",

        "status": 1,

        "location": {

            "latitude": "42.253000",

            "longitude": "-1.333157"

        },

      "device_list": {

                {

                    "serial_number": "9230160002",

                     "last_connection_ts": 1614275317000,

                      "start_date": 1614275317000,

                     "end_date": 1618275317000,

                },

                {

                    "serial_number": "9230160001",

                     "last_connection_ts": 1614275417000,

                      "start_date": 1614275317000,

                     "end_date": “currently”,

                }



        }

    }

]



10.1.2 Read information: single location

It returns general information of the requested location.

10.1.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/info

o    HTTP method: GET

10.1.2.2 Request parameters

Table 97 - Read information: single location. Request parameters

10.1.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/99999999/info (location with id 99999999)

10.1.2.4 Response codes

Table 98 - Read information: single location. Response codes

10.1.2.5 Response content

{

        "location_id": 99999999,

        "tag": "Location 1",

       "description": "Fixed Loctation with devices",

        "status": 1,

        "location": {

            "latitude": "42.753000",

            "longitude": "-1.633157"

        },

      "device_list": {

                {

                    "serial_number": "9230160001",

                     "last_connection_ts": 1614275317000,

                      "start_date": 1614275317000,

                     "end_date": 1618275317000,

                },

                {

                    "serial_number": "9230160002",

                     "last_connection_ts": 1614275417000,

                      "start_date": 1618275317000,

                     "end_date": “currently”,

                }

        }

    }



10.1.3 List all elements: single location

It returns a list with the tag of all the location’s elements.

10.1.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/elements

o    HTTP method: GET

10.1.3.2 Request parameters

Table 99 - List all elements: single location. Request parameters

10.1.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/99999999/elements (location with id 99999999)

10.1.3.4 Response codes

Table 100 - List all elements: single location. Response codes

10.1.3.5 Response content

[

    "Analog_1",

    "Battery",

    "Digital_1",

    "Signal",

    "Temp"

]

10.1.4 List all elements: single location with details

It returns a list with all the location’s elements grouped by the devices assigned to it.

10.1.4.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/elementsDetails

o    HTTP method: GET

10.1.4.2 Request parameters

Table 101 - List all elements: single location. Request parameters

10.1.4.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/99999999/elementsDetails (location with id 99999999)

10.1.4.4 Response codes

Table 102 - List all elements: single location. Response codes

10.1.4.5 Response content

{

  "9230160002": [

{

    "tag": "Analog_1",

    "unit": "l",

    "x0": "0.000000",

    "x1": "0.001000",

    "x2": "0.000000",

    "max": "4.400000",

    "min": "3.400000",

    "persistence": "1",

    "sampling_period": "60",

    "start_time": "00:00:00",

    "end_time": "23:59:59"

},…

{

    "tag": "Analog_2",

    "unit": "l",

    "x0": "0.000000",

    "x1": "0.001000",

    "x2": "0.000000",

    "max": "4.400000",

    "min": "3.400000",

    "persistence": "1",

    "sampling_period": "60",

    "start_time": "00:00:00",

    "end_time": "23:59:59"

}

       ]

}

10.1.5 Read information: single element

It returns the information of the requested element in a location grouped by the devices assigned to it.

10.1.5.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/< location _id>/elements/<element_id>/info

o    HTTP method: GET

10.1.5.2 Request parameters

Table 103 - Read information: single element. Request parameters

10.1.5.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/99999999/elements/Battery/info (element with id='Battery' of location with id 99999999)

10.1.5.4 Response codes

Table 104 - Read information: single element > get info. Response codes

10.1.5.5 Response content

{

  "9230160002":

{

                   "tag": "Battery",

                   "unit": "V",

                   "x0": "0.000000",

                   "x1": "0.001000",

                   "x2": "0.000000",

                   "max": "4.400000",

                  "min": "3.400000",

                 "persistence": "1",

                 "sampling_period": "60",

                 "start_time": "00:00:00",

               "end_time": "23:59:59",

              "next_config": {

                 "next_x0": "",

                 "next_x1": "",

                 "next_x2": "",

                 "next_max": "",

                 "next_min": "",

                 "next_persistence": "",

                 "next_sampling_period": "",

                 "next_start_time": "",

                 "next_end_time": ""

             },

            "config_technician": "",

            "serial_number": "",

        "model": "",

       "manufacturer": "",

       "decimal_places": "2",

       "last_read": {

            "value": 0.13,

            "ts": 1465461022000

       }

   }

}

10.2 Reads Methods

Method to get the data of the Kunak locations.

All data are classified with a flag providing information on their validity. The first status flag of a data is always T (temporary) when the device sends it to the cloud. After, the status of the data can be changed automatically by the Kunak Cloud or by hand by an operator through the validation tool of the cloud.

·         Automatic: when the cloud detects that the data is out of range instantly will change the state of the data to TI (Temporarily Invalid). The cloud analyses the data hourly, daily or weekly and can change the data to TI status in function of predefined cases. After, an operator needs to check the auto invalidations to change the status to I (Invalidated) or V (Valid)

·         Manual (validation tool): the operator will change the status of the data based on the requirements. It can validate (V), invalidate (I) the data or corrected (O).

These are the available validation flags:

Validation	Flag	Name	Description
Automatic	T	Temporary	Raw data
	TI	Temporary Invalid	Data auto invalidate by the Kunak Cloud software.
Manual	I	Invalid	Invalided data manually by an operator
	V	Valid	Confirmation of the validity of the data manually by an operator.
	O	Corrected	Data corrected in base to a manual calibration

Table 105 – Validation flags of the reads of a device

      The flag will only be set to GCc values in the case of gases and PM values for particles, remaining the GC and PM raw data as temporary (T), without applying any change other flag.

A code is attached describing the reason of the flag selected for each data. Normally, for a temporary (T), valid (V) and corrected (O) data, the reason will be 0. The reason is important when the data flag is Temporary invalid (TI) or Invalid (I) to specify what produced that invalidation.

Code just use at the API REST

Code reason	Reason
0	n/a
1	Calibration
2	Maintenance / Repair
3	Sensor Change
4	Broken sensor
5	Malfunction
7	Stabilization period
8	Inatallation / Relocation
9	Natural Event
10	Remote supervision
11	Other
12	Out of range
13	Miscalibrated

Table 106 – Reason why the readings of a device are invalidated

The temporarily invalid (TI) flag is set by the cloud automatically due to the following reasons:

Code reason	Reason	Applies to sensors	Type (hourly, daily, …)	Description
4	Broken sensor	Particles	Hourly	Particle sensor broken
5	Malfunction	Analog	Hourly	4-20mA Error
5	Malfunction	Particles	Hourly	Bad particle sensor air flow
5	Malfunction	Particles	Instantaneous	Bad particle sensor air flow
5	Malfunction	Gases	Instantaneous	Electronic error in the measure
5	Malfunction	Gases	Hourly	Electronic error in the measure
5	Malfunction	Particles	Hourly	Incorrect function of the particle sensor
5	Malfunction	Anemometer	Daily	Incorrect values of wind direction
5	Malfunction	Particles	Daily	Particle sensor obstructed
5	Malfunction	Gases	Hourly	Sensor broken
5	Malfunction	Gases	Hourly	Sensor broken or poisoned
5	Malfunction	Anemometer	Weekly	Sensor disconnected or broken
7	Stabilization period	Gases	Daily	Stabilization period
12	Out of range	Gases	Hourly	Ambient temperature outside the sensor working range
12	Out of range	Particles	Hourly	Humidity over 99%
12	Out of range	All	Instantaneous	Out of range
12	Out of range	Gases	Daily	Period of humidity out of range
12	Out of range	Gases	Hourly	Sensor saturated
9	Natural Event	Gases	Daily	High cross sensitivity gas is present in the air
9	Natural Event	Particles	Hourly	Possible presence of fog or water droplets

Table 107 – Automatic invalidation reason

10.2.1 Get reads from: Multiple elements

It returns the reads within the period [ts, +∞).

The response is limited to 4000 reads so it will return at most the first 4000 within the requested period. In order to collect all the reads within a complete period which contains more than 4000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method. Once the timestamps of the response exceed the upper timestamp of the desired period, calls should stop.

10.2.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/reads/from

o    HTTP method: POST

10.2.1.2 Request parameters

Table 108 - Get reads from: multiple elements. Request parameters

10.2.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/ locations/9999999999/reads/from

JSON input object:

{

    "sensors": ["Battery"],

    "ts": 1528121429000

}

(From ts=1528121429000 for element tagged as 'Battery' in the location with id 9999999999)

10.2.1.4 Response codes

Table 109 - Get reads from: multiple elements. Response codes

10.2.1.5 Response content

[

    {

        "sensor_tag": "Battery",

        "value": "15.170",

        "ts": 1528143051000,

        "validation": "T",

        “reason”: “0”,

   "device_serial_number": "9230160002"

    },

    {

      "sensor_tag": "Battery",

        "value": "2.925",

        "ts": 15281442451000,

        "validation": "T",

        “reason”: “0”,

   "device_serial_number": "9230160002"



    },

    ...

    {

        "sensor_tag": "Battery",

        "value": "4.990",

        "ts": 1528153051000,

        "validation": "T",

        “reason”: “0”,

   "device_serial_number": "9230160002"

    }

]

10.2.2 Get reads fromTo: Multiple elements

It returns the reads within the period [{starTs},{endTs}].

The response is limited to 4000 reads so it will return at most the first 4000 within the requested period.  In order to collect all the reads within a complete period which contains more than 4000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method while keeping the ending timestamp. This way, user can obtain all the reads contained in the desired period.

10.2.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/reads/fromTo

o    HTTP method: POST

10.2.2.2 Request parameters

Table 110 - Get reads fromTo: multiple elements. Request parameters

10.2.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/9999999999/reads/fromTo

(From ts=1528121429000 to ts=1528207830000 for element tagged as ‘Battery’ in the device with SN 9999999999)

JSON input object:

{

    "sensors": ["Battery"],

    "startTs ": 1528121429000,

   "endTs": 1528207830000

}

(From ts=1528121429000 for element tagged as 'Battery' in the device with SN 9999999999)

10.2.2.4 Response codes

Table 111 - Get reads fromTo: multiple elements. Response codes

10.2.2.5 Response content

[

    {

        "sensor_tag": "Battery",

        "value": "15.170",

        "ts": 1528133051000,

        "validation": "T",

        “reason”: “0”,

   "device_serial_number": "9230160002"

    },

    {

      "sensor_tag": "Battery",

        "value": "2.925",

        "ts": 1528142451000,

        "validation": "T",

        “reason”: “0”,

   "device_serial_number": "9230160002"

    },

    ...

    {

        "sensor_tag": "Battery",

        "value": "4.990",

        "ts": 1528143051000,

        "validation": "T",

        “reason”: “0”,

   "device_serial_number": "9230160002"

    }

]

10.2.3 Get reads until: Multiple elements

It returns the reads of an element within the period (-∞, {ts}].

The response is limited to 4000 reads so it will return at most the last 4000 within the requested period. This method is very useful to go through time in descending order (from recent to old reads). By setting {ts} to the current timestamp, a user could know the last {number} reads of a device.

10.2.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/reads/until

o    HTTP method: POST

10.2.3.2 Request parameters

Table 112 - Get reads until: multiple elements. Request parameters

10.2.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/ locations/9999999999/reads/until

JSON input object:

{

    "sensors": ["Battery"],

    "ts": 1528207830000

}

(Until ts=1528207830000 for element tagged as 'Battery' in the location with id 9999999999)

10.2.3.4 Response codes

Table 113 - Get reads until: multiple elements. Response codes

10.2.3.5 Response content

[

    {

        "sensor_tag": "Battery",

        "value": "15.170",

        "ts": 1528123051000,

        "validation": "T",

        “reason”: “0”,

   "device_serial_number": "9230160002"

    },

    {

      "sensor_tag": "Battery",

        "value": "2.925",

        "ts": 1528142451000,

        "validation": "T",

        “reason”: “0”,

   "device_serial_number": "9230160002"

    },

    ...

    {

        "sensor_tag": "Battery",

        "value": "4.990",

        "ts": 1528143051000,

        "validation": "T",

        “reason”: “0”,

   "device_serial_number": "9230160002"

    }

]



10.2.4 Get reads from grouped by timestamps: Multiple elements

It returns the reads within the period [ts, +∞).

The response is limited to 4000 reads so it will return at most the first 4000 within the requested period. In order to collect all the reads within a complete period which contains more than 4000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method. Once the timestamps of the response exceed the upper timestamp of the desired period, calls should stop.

10.2.4.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/reads/fromGroupByTs

o    HTTP method: POST

10.2.4.2 Request parameters

Table 114 - Get reads from grouped by timestamps: multiple elements. Request parameters

10.2.4.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/9999999999/reads/fromGroupByTs

JSON input object:

{

    "sensors": ["'Battery", “Signal”],

    "ts": 1528121429000

}

(From ts=1528121429000 for element tagged as 'Battery' in the location with id 9999999999)

10.2.4.4 Response codes

Table 115 - Get reads from grouped by timestamps: multiple elements. Response codes

10.2.4.5 Response content

[

    {

        "ts": 1528143051000,

        "Battery": {

                "value": "15.170",

                "validation": "T",

                   “reason”: “0”,

        "device_serial_number": "9230160002"

         },

        “Signal”: ": {

                "value": "-100",

                "validation": "T",

                “reason”: “0”,

       "device_serial_number": "9230160002"

         }

    },

    {

       "ts": 15281442451000,

       "Battery": {

                "value": "2.925",

                "validation": "T",

                   “reason”: “0”,

        "device_serial_number": "9230160002"

         },

        “Signal”: ": {

                "value": "-80",

                "validation": "T",

                 “reason”: “0”,

       "device_serial_number": "9230160002"

         }

    },

    ...

    {

         "ts": 1528153051000,

         "Battery": {

                "value": "4.990",

                "validation": "T",

                 “reason”: “0”,

       "device_serial_number": "9230160002"

          },

         “Signal”: ": {

                "value": "-88",

                "validation": "T",

                 “reason”: “0”,

       "device_serial_number": "9230160002"

         }

    }

]

10.2.5 Get reads fromTo grouped by timestamps: Multiple elements

It returns the reads within the period [{starTs},{endTs}].

The response is limited to 4000 reads so it will return at most the first 4000 within the requested period.  In order to collect all the reads within a complete period which contains more than 4000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method while keeping the ending timestamp. This way, user can obtain all the reads contained in the desired period.

10.2.5.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/reads/fromToGroupByTs

o    HTTP method: POST

10.2.5.2 Request parameters

Table 116 - Get reads fromTo grouped by timestamps: multiple elements. Request parameters

10.2.5.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/9999999999/reads/fromToGroupByTs

(From ts=1528121429000 to ts=1528207830000 for element tagged as ‘Battery’ in the location with id 9999999999)

JSON input object:

{

    "sensors": ["Battery", “Signal”],

    "startTs ": 1528121429000,

   "endTs": 1528207830000

}

(From ts=1528121429000 for element tagged as 'Battery' in the location with id 9999999999)

10.2.5.4 Response codes

Table 117 - Get reads fromTo grouped by timestamps: multiple elements. Response codes

10.2.5.5 Response content

[

    {

        "ts": 1528133051000,

        "Battery": {

                "value": "15.170",

                "validation": "T",

                   “reason”: “0”,

       "device_serial_number": "9230160002"

         },

        “Signal”: ": {

                "value": "-100",

                "validation": "T",

                   “reason”: “0”,

       "device_serial_number": "9230160002"

         }

    },

    {

       "ts": 1528142451000,

       "Battery": {

                "value": "2.925",

                "validation": "T",

                   “reason”: “0”,

       "device_serial_number": "9230160002"

         },

        “Signal”: ": {

                "value": "-80",

                "validation": "T",

                   “reason”: “0”,

       "device_serial_number": "9230160002"

         }

    },

    ...

    {

         "ts": 1528143051000,

         "Battery": {

                "value": "4.990",

                "validation": "T",

                   “reason”: “0”,

       "device_serial_number": "9230160002"

          },

         “Signal”: ": {

                "value": "-88",

                "validation": "T",

                  “reason”: “0”,

       "device_serial_number": "9230160002"

         }

    }

]

10.2.6 Get reads until grouped by timestamps: Multiple elements

It returns the reads of an element within the period (-∞, {ts}].

The response is limited to 4000 reads so it will return at most the last 4000 within the requested period. This method is very useful to go through time in descending order (from recent to old reads). By setting {ts} to the current timestamp, a user could know the last {number} reads of a location.

10.2.6.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/reads/untilGroupByTs

o    HTTP method: POST

10.2.6.2 Request parameters

Table 118 - Get reads until grouped by timestamps: multiple elements. Request parameters

10.2.6.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/9999999999/reads/untilGroupByTs

JSON input object:

{

    "sensors": ["Battery", “signal”],

    "ts": 1528207830000

}

(Until ts=1528207830000 for element tagged as 'Battery' in the location with id 9999999999)

10.2.6.4 Response codes

Table 119 - Get reads until grouped by timestamps: multiple elements. Response codes

10.2.6.5 Response content

[

    {

        "ts": 1528123051000,

        "Battery": {

                "value": "15.170",

                "validation": "T",

                   “reason”: “0”,

       "device_serial_number": "9230160002"

         },

        “Signal”: ": {

                "value": "-100",

                "validation": "T",

                   “reason”: “0”,

       "device_serial_number": "9230160002"

         }

    },

    {

       "ts": 1528142451000,

       "Battery": {

                "value": "2.925",

                "validation": "T",

                   “reason”: “0”,

       "device_serial_number": "9230160002"

         },

        “Signal”: ": {

                "value": "-80",

                "validation": "T",

                   “reason”: “0”,

       "device_serial_number": "9230160002"

         }

    },

    ...

    {

         "ts": 1528143051000,

         "Battery": {

                "value": "4.990",

                "validation": "T",

                   “reason”: “0”,

       "device_serial_number": "9230160002"

          },

         “Signal”: ": {

                "value": "-88",

                "validation": "T",

                  “reason”: “0”,

       "device_serial_number": "9230160002"

         }

    }

]

10.2.7 Get Validation Logs from: Multiple locations

It returns the validation logs within the period [ts, +∞). The response “action_ts” is the moment when the validation was made and the “range” the period of data of the element that has changed.

The response is limited to 1000 validation logs so it will return at most the first 1000 within the requested period. In order to collect all the validation logs within a complete period which contains more than 1000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method. Once the timestamps of the response exceed the upper timestamp of the desired period, calls should stop.

10.2.7.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/validationLog/from

o    HTTP method: POST

10.2.7.2 Request parameters

Table 120 - Get Validation Logs from: multiple locations. Request parameters

10.2.7.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/validationLog/from

JSON input object:

{

    "locations": ["9999999999"],

    "ts": 1528121429000

}

(From ts=1528121429000 for the location with id 9999999999)

10.2.7.4 Response codes

Table 121 - Get Validation Logs from: multiple locations. Response codes

10.2.7.5 Response content

[

    {

         "location_id": "9999999999",

        "sensor_tag": "Temp ext",

        "action": "TI",

        "action_ts": 1528143051000,

        "range": {

                "start_ts": 1527143051000,

                “end_ts”: 1527153051000

         },

        "reason": "5"

    },

    {

     " location_id ": "9999999999",

     "sensor_tag": "Battery",

     "action": "I",

     "action_ts": 15281442451000,

     ""range": {

                "start_ts": 1527123051000,

                “end_ts”: 1527123051000

         },

        "reason": "6"

    },

    ...

    {

        " location_id ": "9999999999",

         "sensor_tag": "Temp ext",

        "action": "V",

        "value": "4.990",

        "action_ts": 1528153051000,

        "range": {

                "start_ts": 1527143051000,

                “end_ts”: 1527153051000

         },

        "reason": "0"

    }

]

10.2.8 Get Validation Logs fromTo: Multiple locations

It returns the validation logs within the period [{starTs},{endTs}]. The response “action_ts” is the moment when the validation was made and the “range” the period of data of the element that has changed.

The response is limited to 1000 validation logs so it will return at most the first 1000 within the requested period. In order to collect all the reads within a complete period which contains more than 1000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method while keeping the ending timestamp. This way, user can obtain all the reads contained in the desired period.

10.2.8.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/validationLog/fromTo

o    HTTP method: POST

10.2.8.2 Request parameters

Table 122 - Get Validation Logs fromTo: multiple locations. Request parameters

10.2.8.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/validationLog/fromTo

(From ts=1528121429000 to ts=1528207830000 for the location with id 9999999999)

JSON input object:

{

    "locations": ["9999999999"],

    "startTs ": 1528121429000,

   "endTs": 1528207830000

}

(From ts=1528121429000 for To ts=1528207830000 the location with id 9999999999)

10.2.8.4 Response codes

Table 123 - Get Validation Logs fromTo: multiple locations. Response codes

10.2.8.5 Response content

[

    {

         "location_id": "9999999999",

        "sensor_tag": "Temp ext",

        "action": "TI",

        "action_ts": 1528143051000,

        "range": {

                "start_ts": 1527143051000,

                 “end_ts”: 1527153051000

         },

        "reason": "5"

    },

    {

     " location_id ": "9999999999",

     "sensor_tag": "Battery",

     "action": "I",

     "action_ts": 15281442451000,

     "range": {

                "start_ts": 1527123051000,

                “end_ts”: 1527123051000

         },

        "reason": "6"

    },

    ...

    {

        " location_id ": "9999999999",

         "sensor_tag": "Temp ext",

        "action": "V",

        "value": "4.990",

        "action_ts": 1528153051000,

        "range": {

                "start_ts": 1527143051000,

                 “end_ts”: 1527153051000

         },

        "reason": "0"

    }

]

10.2.9 Get Validation Logs until: Multiple locations

It returns the validation logs of an element within the period (-∞, {ts}]. The response “action_ts” is the moment when the validation was made and the “range” the period of data of the element that has changed.

The response is limited to 1000 validation logs so it will return at most the last 1000 within the requested period. This method is very useful to go through time in descending order (from recent to old validation log). By setting {ts} to the current timestamp, a user could know the last {number} validation log of a location.

10.2.9.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/validationLog/until

o    HTTP method: POST

10.2.9.2 Request parameters

Table 124 - Get Validation Logs until: multiple locations. Request parameters

10.2.9.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/validationLog/until

JSON input object:

{

    "locations": ["9999999999"],

   "ts": 1528207830000

}

(Until ts=1528207830000 for the location with id 9999999999)

10.2.9.4 Response codes

Table 125 - Get Validation Logs until: multiple locations. Response codes

10.2.9.5 Response content

[

    {

        "location_id": "9999999999",

         "sensor_tag": "Temp ext",

        "action": "V",

        "value": "4.990",

        "action_ts": 1528153051000,

        "range": {

                "start_ts": 1527143051000,

                 “end_ts”: 1527153051000

         },

        "reason": "0"

    },…

    {

     "location_id": "9999999999",

     "sensor_tag": "Battery",

     "action": "I",

     "action_ts": 15281442451000,

     "range": {

                "start_ts": 1527123051000,

                 “end_ts”: 1527123051000

         },

        "reason": "6"

    },{

         "location_id": "9999999999",

        "sensor_tag": "Temp ext",

        "action": "TI",

        "action_ts": 1528143051000,

        "range": {

                "start_ts": 1527143051000,

                 “end_ts”: 1527153051000

         },

        "reason": "5"

    }]



10.3 Warnings Methods

The methods described below are about the warnings caused by a threshold exceeded by an element of a location.

10.3.1 Get all warnings: all elements

It returns all the warnings (active, checked and unchecked ones) of the requested location.

10.3.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/elements/alarms/all? startTs=<startTs>&endTs=<endTs>&number=<number>

o    HTTP method: GET

10.3.1.2 Request parameters

Table 126 - Get all warning: all elements. Request parameters

10.3.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/9999999999/elements/alarms/all?startTs= 1533887528000&endTs=1535972619000&number=100

10.3.1.4 Response codes

Table 127 - Get all warning: all elements. Response codes

10.3.1.5 Response content

{

    "active": [

        {

            "element_id": "Heartbeat",

"description": "persistence: 1, last connection: 2018-09-05 15:06:05 UTC",

            "start_ts": "1536160265000",

            "end_ts": "",

     "device_serial_number": "9230160002"

        }

    ],

    "unchecked": [

        {

            "element_id": "Heartbeat",

"description": "persistence: 1, last connection: 2018-08-10 07:47:08 UTC",

            "start_ts": "1533887528000",

            "end_ts": "1535972619000",

     "device_serial_number": "9230160002"

        },

        {

            "element_id": "Heartbeat",

"description": "persistence: 1, last connection: 2018-09-03 11:52:27 UTC",

            "start_ts": "1535975607000",

            "end_ts": "1535975844000",

     "device_serial_number": "9230160002"

        }

    ],

    "checked": [

        {

            "element_id": "Heartbeat",

"description": "persistence: 1, last connection: 2018-08-09 14:31:12 UTC",

            "start_ts": "1533825372000",

            "end_ts": "1533828343000",

     "device_serial_number": "9230160002"

        },

        ...

        {

            "element_id": "Heartbeat",

"description": "persistence: 1, last connection: 2018-08-09 15:46:14 UTC",

            "start_ts": "1533829874000",

            "end_ts": "1533830162000",

     "device_serial_number": "9230160002"

        }

    ]

}

10.3.2 Get pending warnings: all elements

It returns the warnings that a user should be aware of active and unchecked warnings of the requested location.

10.3.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/elements/alarms/pending? startTs=<startTs>&endTs=<endTs>&number=<number>

o    HTTP method: GET

10.3.2.2 Request parameters

Table 128 - Get pending warnings: all elements. Request parameters

10.3.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/9999999999/elements/alarms/pending?startTs= 1533887528000&endTs=1535972619000&number=100

10.3.2.4 Response codes

Table 129 - Get pending warnings: all elements. Response codes

10.3.2.5 Response content

{

    "active":[

        {

            "element": "Battery",

            "description":"<= 3.40 V, persistence: 1",

            "start_ts":"1457001533000",

     "device_serial_number": "9230160002"

        },

        {

            "element": "CO GCc"

            "description":">= 2000 ppb, persistence: 2",

            "start_ts":"1457002312000",

     "device_serial_number": "9230160002"

        },

        {

            "element": "PM10"

            "description":"<= 50 ug/m3, persistence: 1",

            "start_ts":"1457095128000",

     "device_serial_number": "9230160002"

        }

    ],

    "unchecked":[

        {

            "element": "Battery",

            "description":"<= 3.50 V, persistence: 2",

            "start_ts":"1457001033000"

            "end_ts":"1457001933000",

     "device_serial_number": "9230160002"

        },

        {

            "element": "CO GCc"

            "description":">= 1800 ppb, persistence: 4",

            "start_ts":"1457000312000",

            "end_ts": "1457000912000",

     "device_serial_number": "9230160002"

        }

    ]

}

10.3.3 Get active warnings: all elements

It returns the active warnings of all the elements of the requested location. A warning is activated when the associated element doesn't work properly (samples beyond thresholds, connection failures…) Warnings are open automatically by multiple possible reasons (threshold, heartbeat…). Warning can't be closed manually: only the reads within the configured range [min threshold, max threshold] or device connections (once a device is connected, threshold alerts are closed) can deactivate them.

10.3.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/elements/alarms/active

o    HTTP method: GET

10.3.3.2 Request parameters

Table 130 - Get active warnings: all elements. Request parameters

10.3.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/9999999999/elements/alarms/active

10.3.3.4 Response codes

Table 131 - Get active warnings: all elements. Response codes

10.3.3.5 Response content

[

    {

        "element_id": "Flow T3",

        "description": "Possible partial break",

        "start_ts": "1528208210000",

        "end_ts": "",

   "device_serial_number": "9230160002"

    },

    {

        "element_id": "Flow T2",

        "description": "Partial obstruction",

        "start_ts": "1526476032000",

        "end_ts": "",

   "device_serial_number": "9230160002"

    }

]

10.4 Operation Methods

Battery, charge, heartbeat operation alarms that can be seen by every type of account and device. The rest of operation alarms are only accessible for devices with the “operation” package. The different codes of the operation alarms that can be found, are described below.

Alarm Code	Applies to	Type (hourly, daily, …)	Description	Help
0	Device	Instantaneous	Heartbeat: Connection has been lost Persistence: {value}, last connection: {last connection}	Possible coverage problem, with the mobile operator or incorrect disconnection of the battery.
1	Device	Instantaneous	Modbus reading error	Check if Modbus RS-485 cable is  properly connected and if the device is properly configured and powered.
2	Device	Instantaneous	Working temperature out of range	Check that the device and its sensors have not suffered any damage
3	Sensor	Hourly	Broken or wrongly connected sensor.	Replace the sensor
4	Device	Hourly	Error in the power supply of the analog measurement part of the gas sensors	Check that the internal wiring is correctly connected and that the voltage is reaching the PCB where the gas sensors are connected
5	Sensor	Daily	Saturated or broken sensor	The sensor has been exposed to concentrations greater than its measurement range. Wait until the concentration levels return within the sensor measurement ranges or place it in a clean area and wait for its stabilization. If after 72 hours is the issue has not beensolved, the sensor might have been damaged and needs to be replaced.
6	Sensor	Hourly	Broken sensor or extremely dry or wet.	Locate the sensor in a clean area at 50% of RH and wait for its stabilization. If it does not recover to its normal values, replace the sensor
7	Sensor	Daily	Poisoned or broken sensor	PLace the sensor in a clean area for 72 h to observe if it recovers. If the error remains, replace the sensor.
8	Sensor	Daily	Particle sensor partially obstructed.	Clean the particle sensor and filters according to the manual
9	Sensor	Daily	Particle sensor obstructed.	Clean the sensor and filters immediately according to the manual to avoid possible damage to the sensor itself.
10	Sensor	Daily	Air flow failure in the particle sensor	Clean the sensor and restart it. If this error appears constantly, the sensor might be obstructed or broken. Contact technical support.
11	Sensor	Hourly	Particle sensor laser probably broken.	Contact technical support to replace the sensor.
12	Sensor	Hourly	4-20 mA sensor disconnected, not powered, broken or out of range.	Check the connection of the sensor and its correct operation.
13	Sensor	Daily	Wind direction sensor blocked or broken.	Check the free movement of the wind vane.
14	Sensor	Daily	Wind direction sensor broken.	Check the correct connection of the wind vane.
15	Sensor	Daily	At least 50% of data are missing for the last 24 h
16	Sensor	Daily	The sensor has a serious problem, and its data are not being received.	Check that the sensor is operating properly. If does, restart the device. If the error persists, contact technical support.
17	Sensor	Daily	High internal temperature inside the device	Check the working conditions of the device to avoid any damage of their internal components (battery, some sensors...).
18	Device	Instantaneous	Heartbeat: Lost of connexion probably due to battery discharge. Persistence: {value}, last connection: {last connection}	Either recharge, replace the battery or check the correct operation of the power supply.
19	Sensor	Weekly	Wind sensor disconnected or broken	Check the correct connection of the wind sensor
20	Sensor	Daily	Power supply or solar panel disconnected or broken	Check the power supply or the solar panel connection, and its correct operation.
21	Sensor	Hourly	Primary battery low or power voltage reduced	Check the power voltage or replace the primary battery.
22	Sensor	Hourly	Device close to run out of battery	Check the correct connection of the power supply.
23	Sensor	Weekly	The gas sensors have been working too long out of their recommended humidity range. Extended exposure to humidity below 15% or above 85% could damage these sensors	Place the device outside these humidity conditions to recover the gas sensors.
24	Sensor	Daily	The gas sensor baseline may be slightly out of calibration.	Recalibrate the gas sensor baseline.
25	Sensor	Daily	Gas sensor baseline is out of calibration reducing sensor accuracy	Urgently recalibrate the sensor baseline
26	Sensor	Daily	The gas sensors have been working below the recommended humidity range. Extended exposure to a relative humidity below 5% may damage these sensors	Place the device outside these humidity conditions to recover the gas sensors.
27	Device	Instantaneous	Incorrect sensor initialization	Reset the device. If persist, contact support
28	Device	Instantaneous	The device could NOT be geolocated correctly	When the device is indoors, it may fail. Make sure the device is outdoors and try asking it to geolocate the device automatically.
31	Device	Daily	The device is not working properly. Error "V_V5_Aux"	Please, contact with support to solve the problem
32	Device	Daily	The device is not working correctly. (Error: PCB Gases)	Please, contact with support to solve the problem
33	Sensor	Daily	Weak mobile coverage	Consider placing the device in another location with more coverage to avoid data loss
34	Device	Daily	Device is not sending data to the platform	Possible error in the device or in the communications. Try restarting the device.
35	Sensor	Daily	Bad connection cartridge	Switch off the device and unplug the cartridge. Check that the pins of the connector are not bent and plug again the cartridge.
36	Device	Instantaneous	Internal malfunction: {description}	Please, contact with support to solve the problem
38	Sensor	Hourly	Some cartridges ({0}) are no compatible with the firmware version.	Please update the device so that it can recognise the cartridge. Go to update section.
45	Device	Daily	Cartridge improperly connected or disconnected.	Switch off the device and unplug the cartridge. Check that the pins of the connector are not bent and plug again the cartridge.

Table 132 – List of all the operation alarms that can appear

10.4.1 Get operation alarms from: single location

It returns the operation alarms of a location within the period ({ts},+∞].

The response is limited to 1000 operation alarms so it will return at most the first 1000 within the requested period. In order to collect all the operation alarms within a complete period which contains more than 1000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method. Once the timestamps of the response exceed the upper timestamp of the desired period, calls should stop.

10.4.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/operationAlarms/from ts=<ts>&number=<number>

o    HTTP method: GET

10.4.1.2 Request parameters

Table 133 - Get operation alarms from. Request parameters

10.4.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/9999999999/operationAlarms/from?ts=1528207830000

(From ts=1528207830000 for the location with id 9999999999)

10.4.1.4 Response codes

Table 134 - Get operation alarms from. Response codes

10.4.1.5 Response content

[    {

        "sensor_tag": " Charge ",

        "code": "20",

        "start_ts": 1528123051000,

        "end_ts": 1528723051000,

   "device_serial_number": "9230160002"

    },

     {

        "sensor_tag": "Charge",

        " code ": "20",

        "start_ts": 1529123051000,

         “end_ts”: 1529223051000 ,

   "device_serial_number": "9230160002"



    },

    ...

    {

        "sensor_tag": "Charge",

        "code": "20",

        "start_ts": 1529223051000,

         “end_ts”: “”,

   "device_serial_number": "9230160002"

    }

]

10.4.2 Get operation alarms fromTo: single location

It returns the operation alarms of a location within the period ({startTs},{endTs}].

The response is limited to 1000 operation alarms so it will return at most the first 1000 within the requested period. In order to collect all the reads within a complete period which contains more than 1000, consecutive calls to this method could be done using the last timestamp of the response as the start timestamp of the next call to this method while keeping the ending timestamp. This way, user can obtain all the operation alarms contained in the desired period.

10.4.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/operationAlarms/fromTo?startTs=<startTs>&endTs=<endTs>&number=<number>

o    HTTP method: GET

10.4.2.2 Request parameters

Table 135 - Get operation alarms fromTo. Request parameters

10.4.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/9999999999/operationAlarms/fromTo?startTs=1528207830000&endTs=1529223051000

(From ts=1528207830000 to ts= 1529223051000 for the location with id 9999999999)

10.4.2.4 Response codes

Table 136 - Get operation alarms fromTo. Response codes

10.4.2.5 Response content

[    {

        "sensor_tag": " Charge ",

        "code": "20",

        "start_ts": 1528123051000,

        "end_ts": 1528723051000,

   "device_serial_number": "9230160002"

    },

     {

        "sensor_tag": "Charge",

        "code": "20",

        "start_ts": 1529123051000,

         “end_ts”: 1529223051000 ,

   "device_serial_number": "9230160002"

    },

    ...

     {

        "sensor_tag": "Charge",

        "code": "20",

        "start_ts": 1529223051000,

         “end_ts”: “”,

   "device_serial_number": "9230160002"

    },

]

10.4.3 Get operation alarms until: single location

It returns the operation alarms of a location within the period (-∞, {ts}].

The response is limited to 1000 operation alarms so it will return at most the last 1000 within the requested period. This method is very useful to go through time in descending order (from recent to old operation alarms). By setting {ts} to the current timestamp, a user could know the last {number} operation alarm of a location.

10.4.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/<location_id>/operationAlarms/until ts=<ts>&number=<number>

o    HTTP method: GET

10.4.3.2 Request parameters

Table 137 - Get operation alarms until. Request parameters

10.4.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/locations/9999999999/operationAlarms/until?ts=1529507830000

(Until ts=1529507830000 for the location with id 9999999999)

10.4.3.4 Response codes

Table 138 - Get operation alarms until. Response codes

10.4.3.5 Response content

[

    {

        "sensor_tag": "Charge",

        "code": "20",

        "start_ts": 1529223051000,

         “end_ts”: “”,

   "device_serial_number": "9230160002"

    },

     {

        "sensor_tag": "Charge",

        "code": "20",

        "start_ts": 1529123051000,

         “end_ts”: 1529223051000 ,

   "device_serial_number": "9230160002"

    },

    ...

    {

        "sensor_tag": " Charge ",

        "code": "20",

        "start_ts": 1528123051000,

        "end_ts": 1528723051000,

   "device_serial_number": "9230160002"

    }

]







11. API methods for virtual devices

Those are methods for not Kunak devices which use KunakCloud as its main database and visualization tool. In case you only own Kunak devices, ignore this section. Valid serial numbers for those virtual devices are provided by Kunak on demand.

11.1 Element methods

By creating elements that already appear in the following table with the same name and units, you can use all the advantages offered by Kunak Cloud.

Parameter	Description	Units
Timestamp	Time at which the measurement is taken	UTC + 0
CO GCc	CO concentration	ppb
CO2 GCc	CO2 concentration	Ppm
NO GCc	NO concentration	ppb
NO2 GCc	NO2 concentration	ppb
NOx GCc	NOx concentration	ppb
SO2 GCc	SO2 concentration	ppb
O3 GCc	O3 concentration	ppb
H2S GCc	H2S concentration	ppb
NH3 GCc	NH3 concentration	ppm
VOCs GCc	VOCs concentration	ppm
HCl GCc	HCl concentration	ppm
CH4 GCc	CH4 concentration	ppm
TSP	Total Suspended Particles	ug/m3
TPC	Total Particle Counter	count/cm3
PM10	PM10 value in ug/m3	µg/m3
PM4	PM4 value in ug/m3	µg/m3
PM2.5	PM2.5 value in ug/m3	µg/m3
PM1	PM1 value in ug/m3	µg/m3
Temp ext	Temperature value	şC
Humidity ext	humidity value	%RH
Pressure	pressure value	hPa
W Speed AVG	Value of mean wind speed	Km/h or m/s
W Speed MAX	Maximum wind speed value	Km/h or m/s
W Vane AVG	Wind direction value	ş degrees
Dew Point	Dew point value	şC
Solar rad	Solar radiation value	W/m2
UV-A rad	UV-A radiation value	W/m2
UV Index	Ultraviolet index value
Rainfall	Rainfall value	mm
LAeq	Noise value	dB(A)
GNSS Lat	Latitude	deg
GNSS Lon	Longitude	deg
GNSS Alt	Altitude	m
GNSS Speed	Speed	km/h



11.1.1 Insert element

It inserts an element of a device.

11.1.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/insert

o    HTTP method: POST

11.1.1.2 Request parameters

Table 139 - Insert element. Request parameters

11.1.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/5200005050/elements/insert

JSON input:

{

                 ‘tag’: ‘Element 1’,

  ‘unit’: ‘m’,

  "type_id": 1,

  ‘manufacturer’ : ‘Manufacturer 1’,

  "serial_number": ‘serialnumber1’,

  ‘config_technician’: "user1",

  ‘model":  ‘km1’,

  "decimal_places": 6,

  "sampling_period ": 900,

  "start_time": "00:00:00",

  "end_time": "23:59:59",

  "max": "",

   "min": "",

   "persistence": 9,

   "x0": "0.0",

   "x1": "1.0",

   "x2": "0.0"

 }

11.1.1.4 Response codes

Table 140 - Insert element. Response codes

11.1.2 Delete element

Delete one element of a device.

11.1.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id>/delete

o    HTTP method: GET

11.1.2.2 Request parameters

Table 141 - Delete element. Request parameters

11.1.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/5200005050/elements/Element1/delete









11.1.2.4 Response codes

Table 142 - Delete element. Response codes

11.1.2.5 Response Content

A JSON array containing the elements currently registered in the device:

[               "Element2",

                "Element3",

"Element4",

"Element5"

]

11.2 Reads methods

11.2.1 Insert reads: multiple elements

It is an efficient way to group reads coming from multiple elements in a single transaction in order to reduce the connections to Kunak Cloud.

11.2.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/reads/insert

o    HTTP method: POST

11.2.1.2 Request parameters

Table 143 - Insert reads, multiple elements. Request parameters

11.2.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/5200005050/elements/reads /insert

JSON input:

[

{

"timestamp": "1483965263000",

"values":

[{

"tag": "Element 1",

"value": "4.000",

"validation": "T",

“reason”: “0”

},{

"tag": "Element 2",

"value", "4.000",

"validation": "T",

“reason”: “0”

}]

},{

"timestamp": "1483965265000",

"values":

[{

"tag": "Element 1",

"value": "4.000",

"validation": "T",

“reason”: “0”

},{

"tag": "Element 2",

"value", "4.000",

"validation": "T",

“reason”: “0”

}]

}

]





11.2.1.4 Response codes

Table 144 - Insert reads, multiple elements. Response codes

11.2.2 Insert reads: single element

It inserts reads coming from a single element.

11.2.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/<element_id> /reads/insert

o    HTTP method: POST

11.2.2.2 Request parameters

Table 145 - Insert reads, single element. Request parameters

11.2.2.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/5200005050/elements/Element%201/reads/insert

JSON input:

[

{

"timestamp": "1483965263000",

"value": "4.00",

"validation": "T",

“reason”: “0”



},

{

"timestamp": "1483965233000",

"value": "5.05",

"validation": "T",

“reason”: “0”

                }

]

11.2.2.4 Response codes

Table 146 - Insert reads, single element. Response codes

11.3 Warnings methods

11.3.1 Open warnings: multiple elements

It activates an element alarm. Check the alarm diagram in the section 8 (Usage guidelines) to understand how the alarm management works.

11.3.1.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/alarms/open

o    HTTP method: POST

11.3.1.2 Request parameters

Table 147 - Open alarms. Request parameters

11.3.1.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/5200005050/elements/alarms/open

JSON input::

[

{

"tag’: "Element 1",

"start_ts": "1483965263000",

"description": "Element 1 alarm"

},

{

"tag’: "Element 1",

"start_ts": "1483966263000",

"description": "Sensor disconnected"

                },

{

"tag’: "Element 2",

"start_ts": "1483965263000",

"description": "<=3.00"

}

]

11.3.1.4 Response codes

Table 148 - Open alarms. Response codes

11.3.2 Close warnings: multiple elements

It closes already open alarms. Check the alarm diagram in the section 8 (Usage guidelines) to understand how the alarm management works.

11.3.2.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/alarms/close

o    HTTP method: POST

11.3.2.2 Request parameters

Table 149 - Close alarms. Request parameters

11.3.2.3 Example request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/5200005050/elements/alarms/close

JSON input::

[

{

"tag’: "Element 1",

"end_ts": "1483965263000"

                },

{

"tag’: "Element 1",

"end_ts": "1483966263000",

                },

{

"tag’: "Element 2",

"end_ts": "1483965263000",

                }

]

11.3.2.4 Response codes:

Table 150 - Close alarms. Response codes

11.3.3 Insert warnings: multiple elements

Insert alarms of an element.

11.3.3.1 Request

o    URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/<device_id>/elements/alarms/insert

o    HTTP method: POST

11.3.3.2 Request parameters

Table 151 - Insert alarms. Request parameters

11.3.3.3 Sample request

URL: https://kunakcloud.com/openAPIv0/v1/rest/devices/5200005050/elements/alarms/insert

JSON input:

[

{

"tag": "Element 1",

 "start_ts": "1483965263000",

 "end_ts": "1483965273000",

"description": ">4.00"

                },

{

"tag": "Element 2",

                                "start_ts": "1483966263000",

                                "end_ts": "1483966266000",

                                "description": "<=2.00"

                },

{

                                "tag": "Element 1",

                                "start_ts": "1483965263000",

                                 "end_ts": "1483966263000",

                                "description": "<=2.00"

                }

]

11.3.3.4 Response codes

Table 152 - Insert alarms. Response codes
